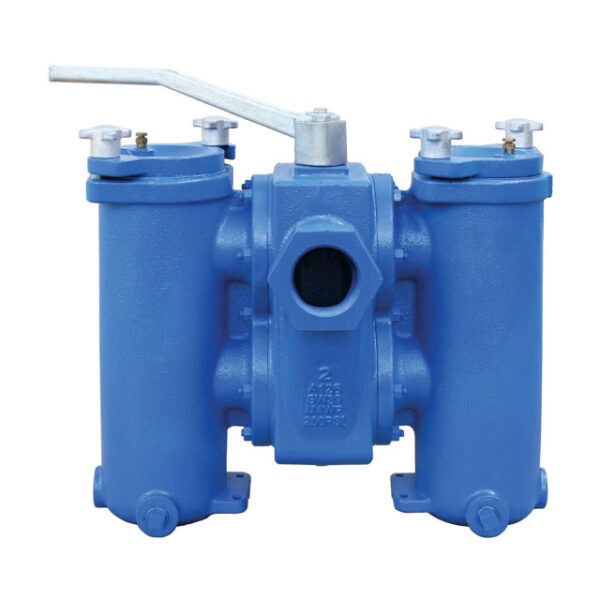

Titan Flow Control Filter 304SS Model DS 695-CI (flanged – cast iron)
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
Titan Flow Control’s DS 695-CI Flanged Cast Iron Duplex Strainer is a unique product within the pipeline industry. Like other basket strainers, the duplex strainer protects expensive downstream equipment by mechanically removing solids from flowing fluids via a perforated, mesh, or wedge wire straining element. However, the duplex strainer is designed with two basket chambers and a flow diverter system that allows the pipeline flow to be switched from one chamber to the other, completely isolating the flow to a single chamber. This makes the duplex strainer ideal for non-interruptible applications that cannot be shut down during routine maintenance and cleaning operations.
Additional information
Product Specifications
- Type: Duplex Basket Strainer
- Model: DS 695-CI
- End Type: Flanged
- ASME Class: 125
- Body Material: Cast Iron ASTM A126 Gr. B
- Straining Element: Stainless Steel
- Cover: Cast Iron ASTM A126 Gr. B
- Ball: Stainless Steel
- O-Ring Straining Element: Nitrile Rubber
- Seat: Teflon (PTFE)
- Seal: Nitrile Rubber
- O-Ring Body: Nitrile Rubber
- Handle: Carbon Steel Zinc Coated
- Pressure/Temperature Rating: 200 PSI @ 150°F
- Material Temperatures:
Nitrile Rubber (Seal): -20 – 250°F
Stainless Steel Ball: Max 450°F - 3/4 – 4 in. Standard Screen Selections:
Liquid: 1/16 (.0625)
Open Area: 41%
Steam: Not Recommended
Open Area: Not Recommended
Features
- Dual-Ball Diverter Design: This duplex is designed with two stainless steel balls that efficiently divert the pipeline flow from one basket chamber to the other – teflon seats ensure a positive seal and help to prevent seepage into the chamber that is being serviced for cleaning.
- Easy to Operate: Titan’s duplex strainer features a low torque, easy to operate handle that does not require a gearbox – additionally, the handle’s position clearly indicates which basket is in service and which basket can safely be removed for cleaning.
- Reduced “In Line” Maintenance: Titan’s duplex has numerous attributes that help reduce maintenance during cleaning operations – first, the dual ball design isolates each chamber and keeps the servicing chamber dry during cleaning – There are also no special tools required to access and remove the straining element form the chamber – Lastly, the duplex provides cover vents, drain plugs, and foot pads on each chamber.
