Product Description

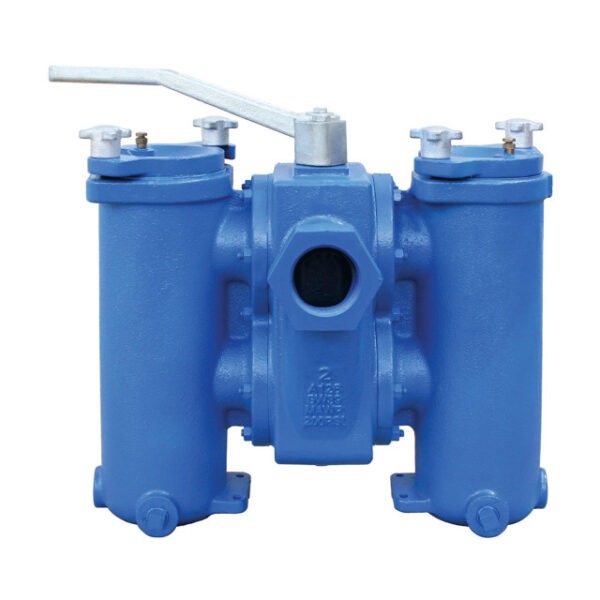

Titan Flow Control’s DS 595-CI NPT Threaded Cast Iron Duplex Strainer is a unique product within the pipeline industry. Like other basket strainers, the duplex strainer protects expensive downstream equipment by mechanically removing solids from flowing fluids via a perforated, mesh, or wedge wire straining element. However, the duplex strainer is designed with two basket chambers and a flow diverter system that allows the pipeline flow to be switched from one chamber to the other, completely isolating the flow to a single chamber. This makes the duplex strainer ideal for non-interruptible applications that cannot be shut down during routine maintenance and cleaning operations.

Additional information

Product Specifications

  • Type: Duplex Basket Strainer
  • Model: DS 595-CI
  • End Type: NPT Threaded
  • ASME Class: 125
  • Body Material: Cast Iron ASTM A126 Gr. B
  • Straining Element: Stainless Steel
  • Cover: Cast Iron ASTM A126 Gr. B
  • Ball: Stainless Steel
  • O-Ring Straining Element: Nitrile Rubber
  • Seat: Teflon (PTFE)
  • Seal: Nitrile Rubber
  • O-Ring Body: Nitrile Rubber
  • Handle: Carbon Steel Zinc Coated
  • Pressure/Temperature Rating: 200 PSI @ 150°F
  • Material Temperatures:
    Stainless Steel Ball: Max 450°F
    Nitrile Rubber (Seal): -20 – 250°F
  • 3/4 – 4 in. Standard Screen Selections:
    Liquid: 1/16 (.0625)
    Open Area: 41%
    Steam: Not Recommended
    Open Area: Not Recommended

Features

  • Dual-Ball Diverter Design: This duplex is designed with two stainless steel balls that efficiently divert the pipeline flow from one basket chamber to the other – teflon seats ensure a positive seal and help to prevent seepage into the chamber that is being serviced for cleaning.
  • Easy to Operate: Titan’s duplex strainer features a low torque, easy to operate handle that does not require a gearbox – additionally, the handle’s position clearly indicates which basket is in service and which basket can safely be removed for cleaning.
  • Reduced “In Line” Maintenance: Titan’s duplex has numerous attributes that help reduce maintenance during cleaning operations – first, the dual ball design isolates each chamber and keeps the servicing chamber dry during cleaning – There are also no special tools required to access and remove the straining element form the chamber – Lastly, the duplex provides cover vents, drain plugs, and foot pads on each chamber.
