Stud Run Tee 12MMX 1/2 BSPT Fitting for Pneumatic Systems
$67.67
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

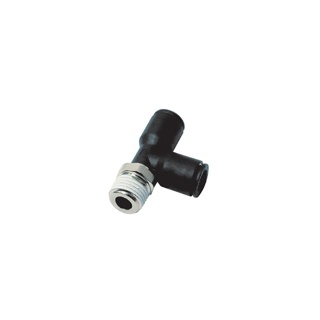

Enhance your pneumatic system with the high-quality Stud Run Tee 12MMX 1/2 “BSPT fitting. This fitting is designed to provide a secure connection between a 12mm tube and a 1/2” BSPT threaded port, ensuring a reliable seal to prevent leaks or air loss. Crafted from durable materials, this fitting is built to withstand high pressures and harsh conditions, making it suitable for a wide range of industrial applications.
With its compact design, the Stud Run Tee fitting allows for easy installation in tight spaces where traditional fittings may not fit. Its precise construction ensures a tight and leak-free connection, promoting optimal performance of your pneumatic system. Whether you are looking to expand your current system or replace worn-out fittings, the Stud Run Tee 12MMX 1/2 “BSPT is the perfect solution for achieving efficient air flow and maintaining system integrity. Trust in this fitting to deliver exceptional performance and durability in your pneumatic applications.
Additional information
‘
Product Specifications
Part Number | 3103 12 21 | Brand | Parker |
Quantity per Box | 10 | Configuration | Tube to Port |
Division | Low Pressure Connectors Europe Division | Body Material | TECHNICAL POLYMER |
Gripping Ring Material | STAINLESS STEEL | Thread Sealant Material | PTFE |
O-Ring Material | NBR | Media | Compressed Air, Other fluids: please consult us |
Specifications Met | ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH) | Maximum Operating Pressure | 20 barg |
Vacuum Pressure Rating | 755 mm-Hg | Shape | Run Tee |
Connection 1 Size | 12 MM (O.D) | Connection 2 Size | R 1/2 |
Product Style | Stud Fitting | Minimum Operating Temperature | -20 ?C |
Maximum Operating Temperature | 80 ?C | Connection 2 Type | Male BSPT |
Weight | 0,037 kg |
