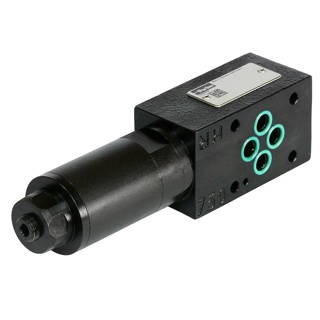

RDM2PT35SVG15 Pressure br.
$1,169.73
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
Introducing the RDM2PT35SVG15: the ultimate pressure relief valve series. These state-of-the-art valves are piston type and boast low hysteresis, ensuring smooth and consistent operation. Whether you need P-T relief or T-T controlled counter balance, the RDM2PT35SVG15 does it all.
Additional information
Product Specifications
| Part Number | RDM2PT35SVG | Brand | Parker |
| Product Series | Pressure valve | Pressure Range (bar) | 5-350 |
| Port Connection | NG06 | Division | Industrial Systems Division Europe |
| Function | Pressure relieved from P to T | Body Material | Steel |
| Seal Material | FPM | Adjustment Mechanism | Hexagon socket |
| Gauge Port | G1/4 | Maximum Operating Pressure | 350/50 bar |
| Pressure Control Range | 5 to 350 bar | Maximum Flow Rate | 40 L/min |
| Nominal Size | NG06 / CETOP 03 | Gauge Port Size | G 1/4 |
| Maximum Operating Temperature | 60 °C | Minimum Operating Temperature | -20 °C |
| For Fluid Type | Hydraulic oil | Mounting Type | Sandwich plate |
| Actuation Type | Manually | Pressure Relief Valve Type | Direct operated |
| Operation Type | Direct | Pressure Relief Valve | P to T |
| Weight | 1.3 kg |
