R6V10-5931011W30B125
$2,374.77
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

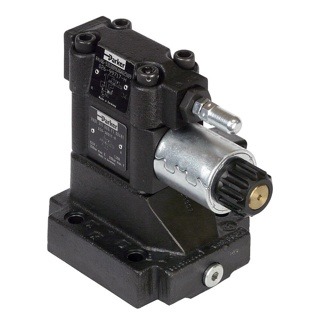

R6V10-5931011W30B125 R6V10-5931011W30B1
Additional information
Product Specifications
| Part Number | R6V10-5931011W30B1 | Brand | Parker |
| Product Series | Pressure valve | Port Connection | NG32 / CETOP 10 |
| Division | Industrial Systems Division Europe | Seal Material | NBR |
| Body Material | Cast iron | Switching Option | Vent function: solenoid activated, unpressurized circulation |
| Drain Option | Drain line internal | Maximum Operating Pressure | Port P, X 350; port T, Y 30 bar |
| Pressure Control Range | 210 bar | Flow Rate | 650 L/min |
| Minimum Operating Temperature | -20 °C | Maximum Operating Temperature | 60 °C |
| Pressure Adjustment Control Type | Hand knob | Mounting Type | Subplate mounting |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Actuation Type | Manually |
| Operation Type | Pilot | Input Voltage | 110/120 VAC, 50/60 Hz |
| Weight | 9.2 kg |
