Product Description

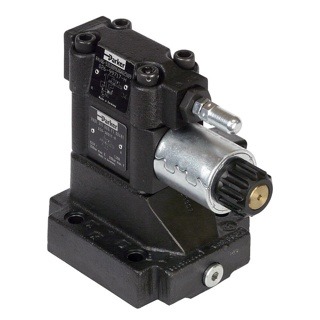

R6V06-5951011garB125 R6V06-5951011GARB1
Additional information
Product Specifications
| Part Number | R6V06-5951011GARB1 | Brand | Parker |
| Product Series | Pressure valve | Port Connection | NG25 / CETOP 08 |
| Division | Industrial Systems Division Europe | Seal Material | NBR |
| Body Material | Cast iron | Switching Option | Vent function: solenoid activated, unpressurized circulation |
| Drain Option | Drain line internal | Maximum Operating Pressure | Port P, X 350; port T, Y 30 bar |
| Pressure Control Range | 350 bar | Flow Rate | 500 L/min |
| Maximum Operating Temperature | 60 °C | Minimum Operating Temperature | -20 °C |
| Pressure Adjustment Control Type | Hand knob | Actuation Type | Manually |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Operation Type | Pilot |
| Mounting Type | Subplate mounting | Input Voltage | 98 VDC |
| Weight | 7.2 kg |
