New Ind. Size 2 sensor
$3,042.24
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

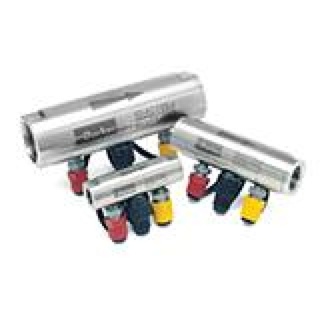

The new, compact Ind. Size 2 Sensor System 20 efficiently gauges oil or water flow, pressure, and temperature constantly, eliminating system shutdown. Its synchronized inline sensor ensures immediate and precise readings, promoting optimal operation at all times.
Additional information
Product Specifications
| Part Number | STI.2344.100 | Brand | Parker |
| Product Type | Condition Monitor | Accuracy | +/- 2.5% FSD |
| Materials of Construction | Stainless Steel | Diameter | 67 mm |
| Division | Hydraulic & Industrial Process Filtration Division EMEA | Height | 73.5 mm |
| Industry | Industrial Manufacturing Equipment | Length | 231 mm |
| Body Material | Stainless Steel | Seal Material | Fluorocarbon |
| Specifications Met | CE Certification | Sensing Method | Differential Pressure |
| Operating Pressure | 420 bar | 6000 psi | Flow Rate | 80-380 l/min |
| Port Size | 1 5/8 – 12 UNF | Size | 2 |
| Thread Size | 1 5/8 – 12 UNF | Product Style | Flow Meter |
| Technology | Filtration | Hydraulics | Maximum Fluid Temperature | 110 °C |
| Operating Temperature | -10 to 110 °C | 14 to 230 °F | Minimum Fluid Temperature | -10 °C |
| For Fluid Type | Mineral | Port Type | SAE |
| Weight | 4.4 kg | Width | 67 mm |
