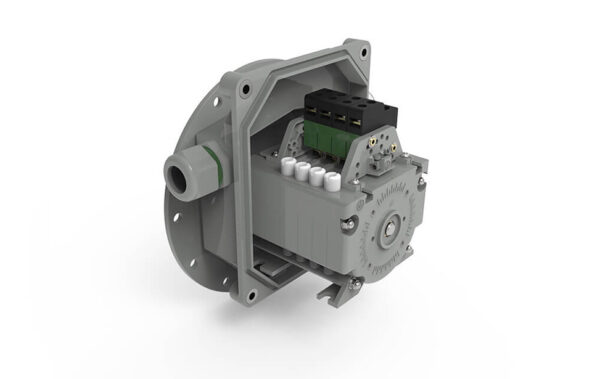

MxZ Geared Cam Limit Switch
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
Series 51 Geared Cam Limit Switches can map a wide range of shaft rotations to the angular displacements of the installed cam discs. These cam discs actuate electro-mechanical switches. They are used where angles or distances cannot be limited directly by switchgear, but only indirectly on the basis of the measured angle of rotation. A classical example of this application involves limiting the hook lift of a crane hoist.
Additional information
Product specification
Markets
- Crane and Hoist
- Stage Technology
- Renewable Energy
- Bridge and Dam
- Mining and Conveyors
Features
- Synthetic housing and metal housing
- Large cam disc diameter
- 2 – 8 contacts
- Installation of incremental- and absolute encoders possible
- Cam adjustments at fixed position in the housing with a gear ratio of 146
- Modular design
- Positive opening according to IEC 60974-5-1 Annex K
Technical Specifications
| Housing Material | synthetic |
|---|---|
| Degree of Protection IP | IP66 |
| Nominal Revolution | 4.1 – 16,000 |
| Electrical Rating Rating | AC-15 DC-13 see catalog for details |
| Max Input Speed RPM | 1000 – 1800 |
| Design | front/foot/mounting flange |
