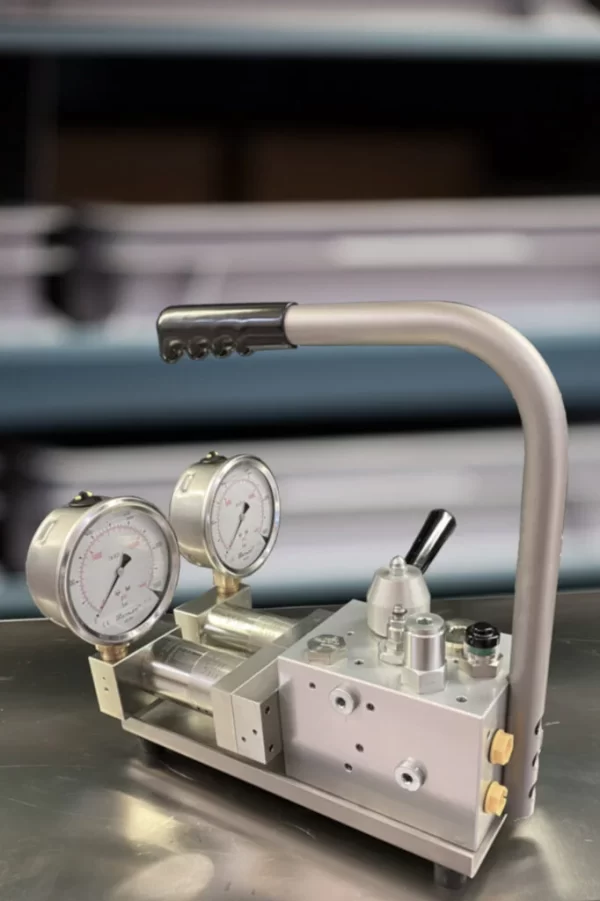

MiniBOOSTER Hydraulic Intensifier M-HC7-812B-10.3-1P02DA

The miniBOOSTER Portable Intensifier System M-HC7 – 812B – 10.3 – 1P02DA is a rugged unit designed for demanding industrial applications. The M-HC7-DA can be used with any low-pressure, from 20 to 350 bar, and with a power source that provides a minimum flow of 2 l/min. Output pressure as high as 1,000 bar in both directions.

Reliability is a primary design consideration. The M-HC7-DA is equipped with a 12-micron filter and a visual filter condition indicator. Service life is extended and down-time avoided.

Portability and ease of operation
With a weight of only 14 kg and a convenient lifting handle, the M-HC7-DA can be easily carried to where it is needed. The M-HC7-DA operates from an existing low-pressure hydraulic supply. No additional utilities are required. All controls are incorporated into the unit and provide simple and reliable performance.

Time is money: The M-HC7-DA can deliver up to 40 l/min and is designed to ensure that system capacity is directed to your process until intensification is required. Cycle times are minimised. Many applications require that the unit provide exceptional accuracy. The M-HC7-DA is proven with two easy-to-read 4” diameter pressure gauges to permit accuracy to be controlled within a tolerance of 1%.
