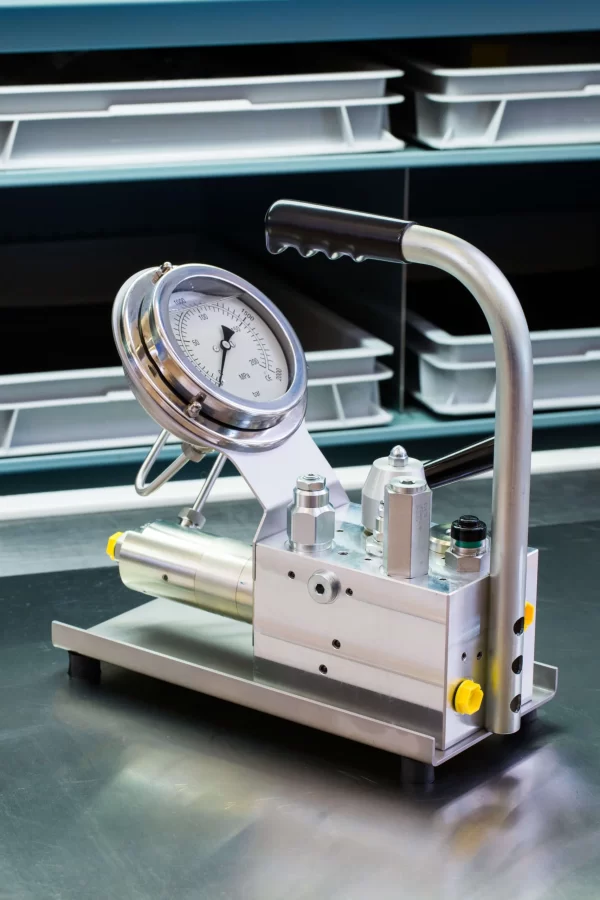

MiniBOOSTER Hydraulic Intensifier M-HC7-810-4.0-1P01

The miniBOOSTER Portable Intensifier System M-HC7 – 810 – 4.0 – 1P01 is a rugged unit designed for demanding industrial applications. The M-HC7 can be used with any low-pressure, from 20 to 350 bar, power source providing a minimum flow of 2 l/min. Output pressure as high as 2,000 bar.

Reliability is a primary design consideration. The M-HC7 is equipped with a 12-micron filter and a visual filter condition indicator. Service life is extended and down-time avoided.

<strong>Portability and ease of operation</strong>
With a weight of only 10 kg and a convenient lifting handle, the M-HC7 can be easily carried to where it is needed. The M-HC7 operates from an existing low pressure hydraulic supply. No additional utilities are required. All controls are incorporated into the unit provide simple and reliable performance.

Time is money: The M-HC7 can deliver up to 40 l/min and is designed to ensure that system capacity is directed to your process until intensification is required. Cycle times are minimized. Many applications require that the unit provide exceptional accuracy. The M-HC7 is proven with an easy-to-read 4” diameter pressure gauge to permit accuracy to be controlled within 1%.
