Product Description

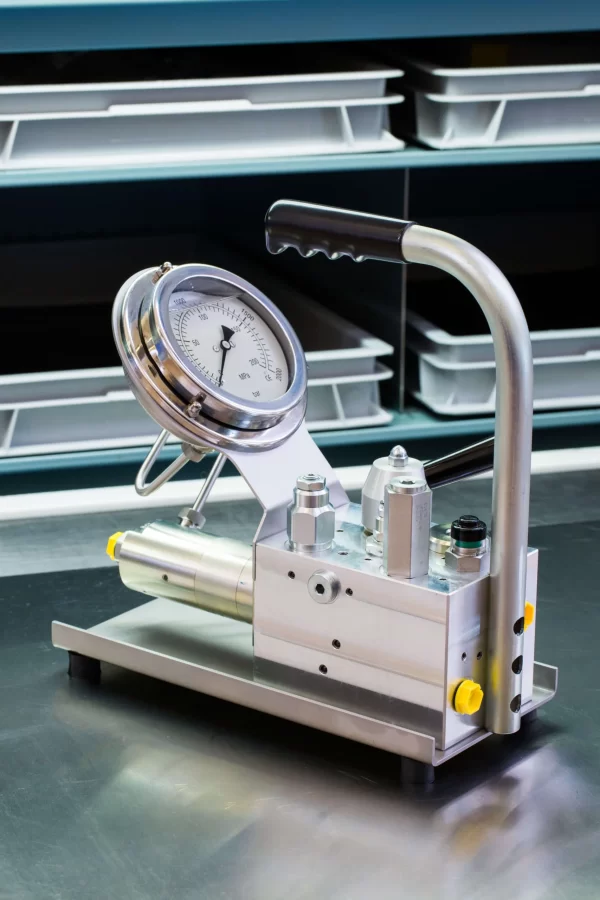

The miniBOOSTER Portable Intensifier System M-HC7 – 801 – 7.6 – 1P01 is a rugged unit designed for demanding industrial applications. The M-HC7 can be used with any low-pressure, from 20 to 350 bar, power source providing a minimum flow of 2 l/min. Output pressure as high as 2,000 bar.
Reliability is a primary design consideration. The M-HC7 is equipped with a 12-micron filter and a visual filter condition indicator. Service life is extended and down-time avoided.
Portability and ease of operation
With a weight of only 10 kg and a convenient lifting handle, the M-HC7 can be easily carried to where it is needed. The M-HC7 operates from an existing low pressure hydraulic supply. No additional utilities are required. All controls are incorporated into the unit provide simple and reliable performance.
Time is money: The M-HC7 can deliver up to 40 l/min and is designed to ensure that system capacity is directed to your process until intensification is required. Cycle times are minimized. Many applications require that the unit provide exceptional accuracy. The M-HC7 is proven with an easy-to-read 4” diameter pressure gauge to permit accuracy to be controlled within 1%.
Additional information
Product Specifications
- Portable and easy to operate
- Reliable and simple performance
- Flexible design; several intensification factors
- Multiple connection possibilities
- Extended service life
- Robust design
PIN: 20 – 350 bar
PH: Up to 2,000 bar maximum
Q: Up to 40 l/min
Weight: 10.0 kg/ 22.0 Lbs.
Function Diagram
Function Diagram M-HC7-801-7.6-1P01
Dimension Drawing
Function Diagram M-HC7-801-7.6-1P01
Connection Types
| Connection | P / P1 / M1 / Z | T | H | M2 |
|---|---|---|---|---|
| M-HC7-801 | 1/4″ BSPP | 3/8″ BSPP | M22x1.5 | |
| M-HC7-810 | 1/4″ BSPP | 3/8″ BSPP | M22x1.5 | |
| M-HC7-812 | 1/4″ BSPP | 3/8″ BSPP | M22x1.5 | 1/4″ BSPP |
High-pressure adapters
High Pressure Adapter M-HC7-801-7.6-1P01
Ordering an M-HC7
Ordering example of an intensifier system M-HC7 for 2,000 bar with pressure relief and pressure-reducing valve, mounted with an HC7 with i = 7.6, H1 M22 x 1.5 and H2 9/16-18 UNF, DV incorporated and BSPP connections.
M-HC7-801B-1P01 mounted with HC7 – 7.6 – B – 12
Attention notes!
Valve pre-settings are required, please specify when ordering the intensifier system.
High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.
Selection of intensifier system
| Ordering code | Connection | Max. pressure | Weight |
|---|---|---|---|
| M-HC7-801A-1P01 | Tube | 2000 bar | 10 kg |
| M-HC7-810A-1P01 | Tube | 2000 bar | 10 kg |
| M-HC7-812A-1P01 | Tube | 2000 bar | 10 kg |
Selection of HC7 model
| Ordering code | H1 | H2 | H3 |
|---|---|---|---|
| HC7-_._-B-12 | M22 x 1.5 | 9/16-18 UNF | – |
| HC7-_._-B-13 | M22 x 1.5 | 9/16-18 UNF | 9/16-18 UNF |
Selection of HC2 intensification factor
| Model | Intensification, i | Model version | Connection |
|---|---|---|---|
| HC7 | 4.0 | B | 12 or 13 |
| HC7 | 5.0 | B | 12 or 13 |
| HC7 | 6.6 | B | 12 or 13 |
| HC7 | 7.6 | B | 12 or 13 |
| HC7 | 9.0 | B | 12 or 13 |
| HC7 | 10.3 | B | 12 or 13 |
| HC7 | 13.0 | B | 12 or 13 |
| HC7 | 16.0 | B | 12 or 13 |
| HC7 | 20.0 | B | 12 or 13 |
| HC7 | 25.0 | B | 12 or 13 |
