MiniBOOSTER Hydraulic Intensifier M-HC6D-011-1.5-1L55
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

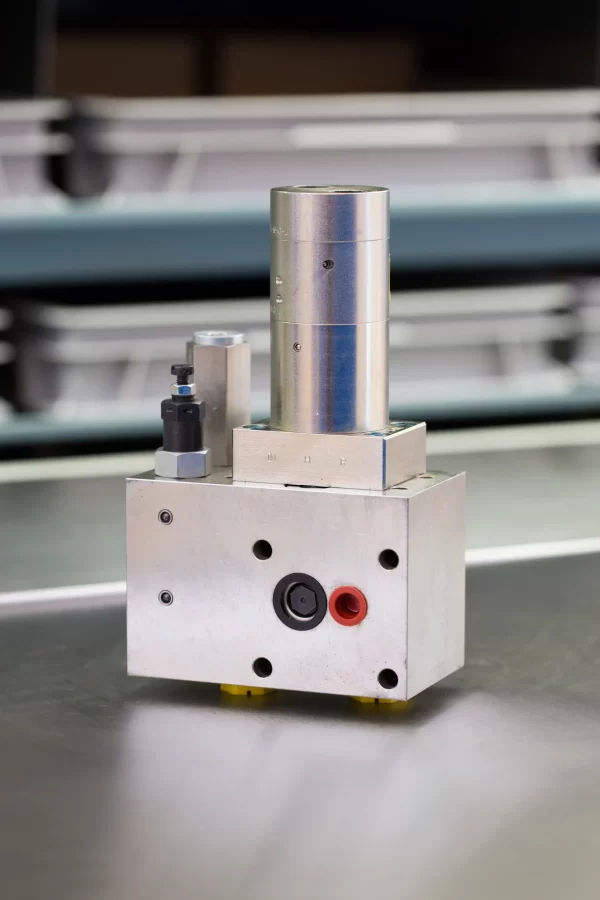

The M-HC6D – 011 – 1.5 – 1L55 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. It operates only when needed, to save energy.
The system is dynamical by means of being able to provide flow at high pressure for intermittent use (< 10 min duty cycle).
Typical applications
Mobile attachments; motors – steering systems – cutters – crushers – shears, off highway equipment, injection molding machines and hydraulic presses. Applicable to machines with insufficient pump capacity to prevent machine stoppage when peak pressures occur.
Easy installation
M-HC-011 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.
Additional information
Product Specifications
- Automatically activated (sequence valve)
- High pressure – up to 700 bar (10,000 psi)
- Max. inlet pressure = 207 bar (3,000 psi)
- Fast fill – system flows up to 100 l/min
- Extended service life
- Robust design
- Flexible design; several boosters/intensification factors
- Switch from by-pass to intensified flow
Functions
The function of the system is simple, but smart. The hydraulic oil is by-passed directly from the pump to the workload at maximum flow when back pressure from the workload has reached a set point close to the maximum pressure of pump.
A sequence valve opens and directs the oil to the booster, which makes the pressure rise. The shift between maximum pump pressure and high pressure happens without intervention from the user and ensures that the workload at all times will be driven at a maximum speed in relation to the required high pressure.
A relief valve is installed to control the maximum allowable pressure that the system can output, and allowing the booster to go for a higher end pressure producing flow at the decided pressure.
Function Diagram
Function Diagram M-HC6D-011-1.5-1L55
Dimension Drawing
Dimension Drawing M-HC6D-011-1.5-1L55
Connection Types
| Connection | P / T / Z / H | M (P / H / 1), F1 / F2 |
|---|---|---|
| M-HC2D-01_-1L100 | 1/2″ BSPP | 1/4″ BSPP |
| M-HC3-01_-1L100 | 1/2″ BSPP | 1/4″ BSPP |
| M-HC6D-01_-1L55 | 1/2″ BSPP | 1/4″ BSPP |
| M-HC6D-01_-1L100 | 1/2″ BSPP | 1/4″ BSPP |
| M-HC6D-01_-1L200 | 1 1/4″ BSPP | 1/4″ BSPP |
| M-HC6D-01_-1L400 | 1 1/4″ BSPP | 1/4″ BSPP |
Flange Mounting
Flange Mounting M-HC6D-011-1.5-1L55
Ordering an M-HC-011
Ordering example of an M-HC-011 for 700 bar, connection flange with HC3 i = 1.5, static use:
M-HC3-011-1L55 mounted with HC3 – 1.5 – A – D
Guidance to calculate the intensification factor for dynamic or static use is at the bottom of this section.
Attention notes!
Valve pre-settings are required, please specify when ordering the intensifier system.
Selection of intensifier system
| Ordering code | Connection | Bypass flow | Max. pressure | Weight |
|---|---|---|---|---|
| M-HC6D-011-1L55 | Tube | 55 l/min | 700 bar | 32.0 kg |
| M-HC2D-011-FL55 | Flange | 55 l/min | 700 bar | 9.3 kg |
| M-HC3-011-FL55 | Flange | 55 l/min | 700 bar | 7.7 kg |
| M-HC2D-011-FL100-PVG32 | Flange | 100 l/min | 700 bar | 9.0 kg |
| M-HC3-011-FL100-PVG32 | Flange | 100 l/min | 700 bar | 7.5 kg |
Selection of intensification factor
| HC2D-_._-A-D | HC3-_._-A-D | HC6D-_._-A-D |
|---|---|---|
| 1.6 | 1.5 | 1.5 |
| 1.9 | 2.0 | 2.0 |
| 2.2 | 2.8 | 2.5 |
| 2.6 | 3.2 | 3.3 |
| 3.2 | 4.0 | 4.0 |
| 4.0 | 5.0 | 4.9 |
| 5.0 | 6.6 | 6.3 |
The intensification factor depends on available inlet and desired outlet pressure. To calculate the initial factor, use the following formular:
i = Desired high pressure / pump pressure
Desired pressure: 550 bar
Pump pressure: 207 bar
i = 550 / 207 = 2.7
For static use: Select an intensification factor higher or equal to the calculated value. In this example calculated i = 2.7, select factor i = 2.8 for an HC3 booster.
For dynamic use: Select an intensification factor 40% higher than the calculated value. In this example calculated i = 550 / 207 = 2.66 + 40% = 3.7, select factor i = 4.0 for an HC3 booster. The desired pressure of 550 bar is finally adjusted with the Relief Valve (6).
Max. tightening torque
| P / T / Z | H/Z | |
| 1/2″ BSPP | 1/2″ BSPP | |
| with steel washer | 13.0 da/Nm | 13.0 da/Nm |
| with cutting edge | 13.0 da/Nm | 13.0 da/Nm |
