Product Description

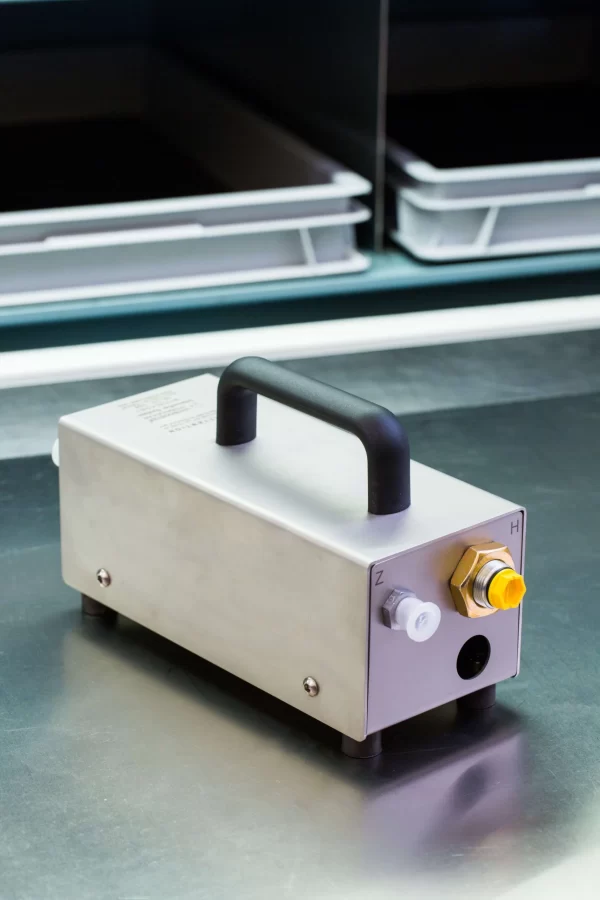

The M-HC22 – 6.6 – G – 1 is a compact and lightweight field unit, weighing only 5.0 kg/ 11.0 Lbs, making it highly versatile for a wide range of applications requiring the generation and maintenance of high pressure.

Equipped with advanced features, the M-HC22 efficiently elevates supplied pressure to a higher outlet pressure while autonomously compensating for oil consumption to sustain the desired high pressure level.

Key components include a Pressure Reducing Valve (PRV) that regulates inlet pressure to the booster section, along with an optional orifice for controlling inlet flow to the maximum allowed for the selected intensification ratio.

With its integrated PRV, the M-HC22 ensures the protection of both the booster and high-pressure tools from excessively high pressures, guaranteeing a stable high-pressure output despite fluctuations in the tank line pressure.

Additional information

Product Specifications

M-HC22 versions: 13 different intensification factors
PIN: 20 – 207 bar
PH: 800 bar maximum
Q: Up to 40 l/min
PRETURN: As low as possible (return pressure to tank)
Weight: 5.0 kg/ 11.0 Lbs

Model Versions:

A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled

Material certificate 6.6 on request

Functions Description

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the PRV (pos. 5) and the internal check valves to the high-pressure side H.
When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function Diagram

Function Diagram M-HC22-6.6-G-1

Dimensions

Dimensions Diagram M-HC22-6.6-G-1

Connection Types

Connection	P / T / Z	H
1	M14 x 1.5 with 24° cone	1″ BSPP

Ordering an M-HC22

Ordering example of an M-HC22 with i = 6.6, DV incorporated and BSPP connections: M-HC22 – 6.6 – G – 1.

Attention note!

The G-model is available in 2 variants, when ordering please specify accordingly:

Dynamic – low hysteresis: Ordering example of an M-HC22 with i = 6.6 RV incorporated and BSPP connections: M-HC22 – 6.6 – G – 1
Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support.

Ordering example of an M-HC22 with i = 6.6 RV with opening ratio x.x incorporated and BSPP connections: M-HC22 – 6.6 – G – x.x – 1

Model

M-HC22

Intensification, i

Select factor
See flow rate table

Model Version.

Select type
A = without DV
B = with DV
G = with proportional valve

Connections

Select thread
1 = BSPP

Selection of intensification factor

Model	Intensification	Model version	Connection
M-HC22	1.2	A, B or G	1
M-HC22	1.5	A, B or G	1
M-HC22	2.0	A, B or G	1
M-HC22	2.2	A, B or G	1
M-HC22	2.5	A, B or G	1
M-HC22	2.8	A, B or G	1
M-HC22	3.2	A, B or G	1
M-HC22	4.0	A, B or G	1
M-HC22	5.0	A, B or G	1
M-HC22	6.6	A, B or G	1
M-HC22	9.0	A, B or G	1
M-HC22	13.0	A, B or G	1
M-HC22	20.0	A, B or G	1

Max. tightening torque

P / T / Z

M14 x 1.5

1/4″ BSPP

with steel washer

4.0 da/Nm

with cutting edge

4.0 da/Nm
