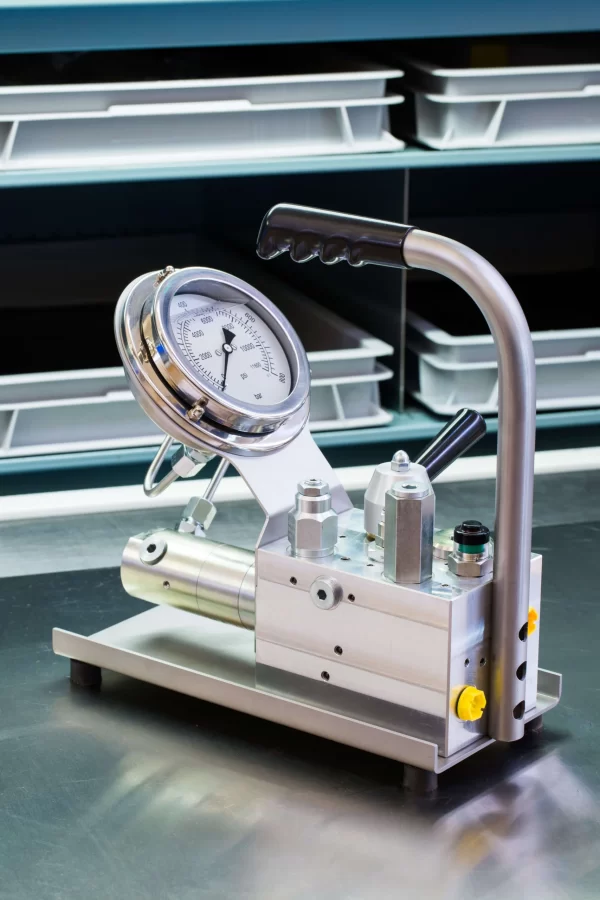

MiniBOOSTER Hydraulic Intensifier M-HC2-812A-20.0

The miniBOOSTER Portable Intensifier System M – HC2 – 812A – 20.0 is a rugged unit designed for demanding industrial applications. The M-HC2 can be used with any low-pressure, from 20 to 350 bar, power source providing a minimum flow of 2 l/min. Output pressure as high as 800 bar. Reliability is a primary design consideration. The M-HC2 is equipped with a 12-micron filter and a visual filter condition indicator. Service life is extended and down-time avoided.

Portability and ease of operation

With a weight of only 9.5 kg and a convenient lifting handle, the M – HC2 – 812A – 20.0 can be easily carried to where it is needed. The M – HC2 – 812A – 20.0 operates from an existing low pressure hydraulic supply. No additional utilities are required. All controls are incorporated into the unit provide simple and reliable performance. Time is money: The M-HC2 can deliver up to 40 l/min and is designed to ensure that system capacity is directed to your process until intensification is required. Cycle times are minimized. Many applications require that the unit provide exceptional accuracy. The M-HC2 is proven with an easy-to-read 4” diameter pressure gauge to permit accuracy to be controlled within 1%.
