MiniBOOSTER Hydraulic Intensifier HC9D2-12.2-A-W
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

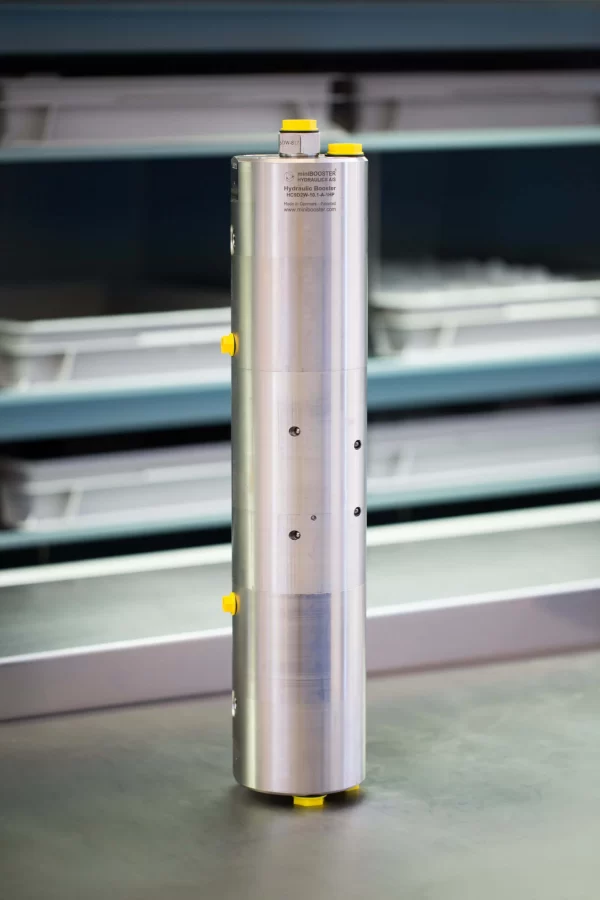

The HC9D2 – 12.2 – A – W is a stainless steel 316L dual media miniBOOSTER unit capable of delivering a maximum flow of 6.5 l/min at the high-pressure end. Similar to other miniBOOSTER models, it elevates supplied pressure to achieve a higher outlet pressure and automatically compensates for oil consumption to maintain high pressure. Outlet pressure adjustment is accomplished by varying the supplied pressure. Despite its flow capability, the HC9D2W maintains a compact design, weighing 25 kg.
Additional information
Product Specifications
- HC9D2 versions: 5 different intensification factors
- PIN: 20 – 207 bar
- PH: 1,380 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Drain connections: Max. 10 bar
- Mounting: Inline tube
- Weight: 25.0 kg.
Model Versions:
- A model = no dump valve
Material certificate 3.1 on request
Flow Rate
| Intensification factor (i) | Max. intensified outlet flow (l/min) | Max. inlet flow (l/min) |
|---|---|---|
| 5.2 | 6.5 | 45.0 |
| 7.1 | 4.8 | 45.0 |
| 10.1 | 3.4 | 45.0 |
| 12.2 | 2.8 | 45.0 |
| 15.0 | 2.4 | 45.0 |
Functions Description
The system operates as follows: Media 1 flows freely through the IN port, driving the LP pistons via bistable valve BV1. Simultaneously, Media 2 is drawn from the suction inlet IN through 2 x KV1 check valves and pumped via 2 x KV2 to the high-pressure side H. This configuration maximizes booster flow, enabling a fast-forward function. Automatic stall occurs upon reaching the end pressure on the high-pressure side H. If a pressure drop occurs due to consumption or leakage, the HP1 and HP2 units activate automatically to maintain the end pressure.
Function Diagram
Function Diagram HC9D2-12.2-A-W
Dimensions
Dimensions Diagram HC9D2-12.2-A-W
Connection Types
| Connection | IN / R | H1 / H2 | S1 / S2 | D1 / D2 |
|---|---|---|---|---|
| 1 | 1/2″ BSPP | 1/2″ BSPP | 1/2″ BSPP | 1/8″ BSPP |
High pressure adapter
Dynamic seals
| Code | Seal material media 1 / 2 | Outlet pressure |
|---|---|---|
| HH | H-PUR / H-PUR | Max 1,380 bar HP |
| HP | H-PUR / PEEK | Max 1,380 bar HP |
| EE | EPDM / EPDM | Max 500 bar HP |
| EP | EPDM / PEEK | Max 1,380 bar HP |
Ordering an HC9D2
Ordering example of an HC9D2 with i = 5.2, with BSPP connections and H-PUR dynamic seals:
HC9D2 – 5.2 – A – 1HH
Model
- HC6D2
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
Connections.
- Select thread
- 1 = BSPP
Dynamic seals
- Select seal type
- See dynamic seal table
Max. tightening torque BSPP
| IN / R | S1 / S2 | D1 / D2 | |
|---|---|---|---|
| 1/2″ BSPP | 1/2″ BSPP | 1/8″ BSPP | |
| With stainless steel washer | 13.0 da/Nm | 13.0 da/Nm | 2.0 da/Nm |
