MiniBOOSTER Hydraulic Intensifier HC75W-9.0-A-12S
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

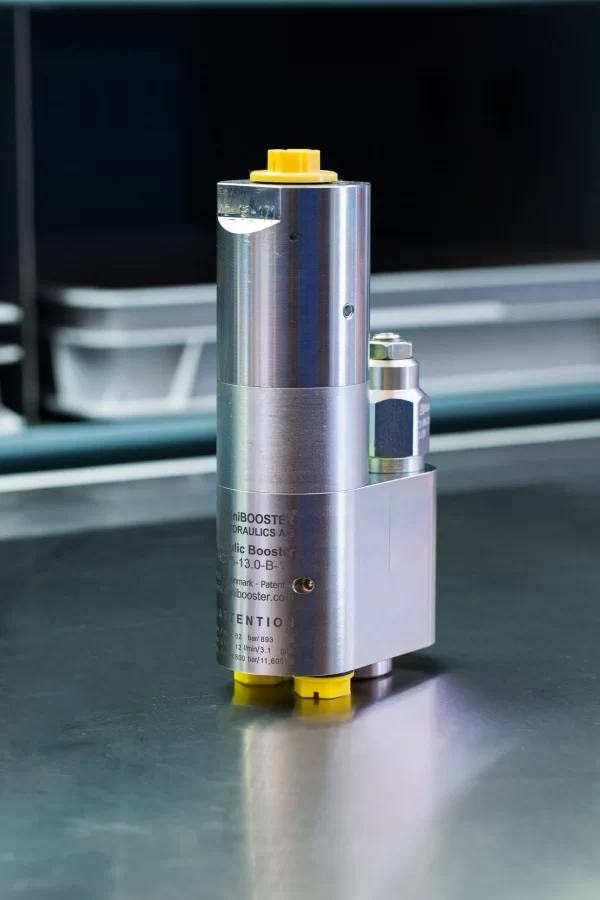

The HC75W – 9.0 – A – 12S is a compact, lightweight stainless steel 316L miniBOOSTER unit, weighing only 2.5 kg/ 5.5 lbs, designed for high-pressure applications. It features a built-in counterbalance valve for rapid cylinder movement and precise pressure control. The booster automatically stalls when reaching the set high-pressure level and compensates for media consumption to maintain pressure. Adjustment of outlet pressure is achieved by regulating the supplied pressure. An optional orifice can be installed to prevent overspeeding.
Additional information
Product specification
- HC75W versions: 10 different intensification factors.
- PIN: 20 – 207 bar.
- PH: 2,000 bar maximum.
- PRETURN: As low as possible (return pressure to tank).
- POUTLET: PH = (PIN – PRETURN) x intensification factor.
- Mounting: Inline tube.
- Weight: 2.5 kg/ 5.5 lbs.
Model versions
- A model = no dump valve.
- B model = with dump valve.
Material certificate 9.0 on request
Flow Rates
| Intensification Factor i | Max.Intensified Outlet flow i/min | Max. Inlet flow i/min |
|---|---|---|
| 4.0 | 2.0 | 14.0 |
| 5.0 | 1.6 | 14.0 |
| 6.6 | 1.3 | 13.0 |
| 7.6 | 1.1 | 13.0 |
| 9.0 | 0.9 | 13.0 |
| 10.3 | 0.8 | 12.0 |
| 13.0 | 0.6 | 12.0 |
| 16.0 | 0.5 | 12.0 |
| 20.0 | 0.3 | 12.0 |
| 25.0 | 0.2 | 12.0 |
Function description
The basic operation is illustrated in the function diagram. Media is fed through the directional valve (in the customer system) to the IN port, flowing freely through the internal check valves to the high-pressure side H.When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
Function diagram
Function diagram HC75W-9.0-A-12S
Dimension
Dimension drawing HC75W-9.0-A-12S
Connection Types
| Connection | IN/R | H1 | H2 | H3 |
|---|---|---|---|---|
| 11 | 1/4″ BSPP | M22 x 1.5 | – | – |
| 12 | 1/4″ BSPP | M22 x 1.5 | 9/16-18 UNF | – |
| 13 | 1/4″ BSPP | M22 x 1.5 | 9/16-18 UNF | 9/16-18 UNF |
High-pressure adapters
High-pressure-adapter HC75W-9.0-A-12S
Ordering an HC75W
Ordering example of an HC75W with i = 9.0, H1 M22 x 1.5 and H2 9/16-18 UNF, DV incorporated and BSPP connections:
HC75W – 9.0 – A – 12S for media > 5 cSt (mm2/s) tested in hydraulic oil
Attention note!
High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.
Valve pre-setting is required, please specify when ordering the intensifier.
Model
- HC75W
Intensification,
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV
Connections
- Select thread
- See table below
- 1_S = BSPP, media > 5 cSt
| Ordering code | IN/R | H1 | H2 | H3 |
|---|---|---|---|---|
| HC75W-___-__-11 | 1/4″ BSPP | M22 x 1.5 | – | – |
| HC75W-___-__-12 | 1/4″ BSPP | M22 x 1.5 | 9/16-18 UNF | – |
| HC75W-___-__-13 | 1/4″ BSPP | M22 x 1.5 | 9/16-18 UNF | 9/16-18 UNF |
Max. tightening torque BSPP
| IN / R | |
| 1/4″ BSPP | |
| with stainless steel washer | 4.0 da/Nm |
