MiniBOOSTER Hydraulic Intensifier HC7-7.6-G-F

Product successfully added to the Quote List

Product Description

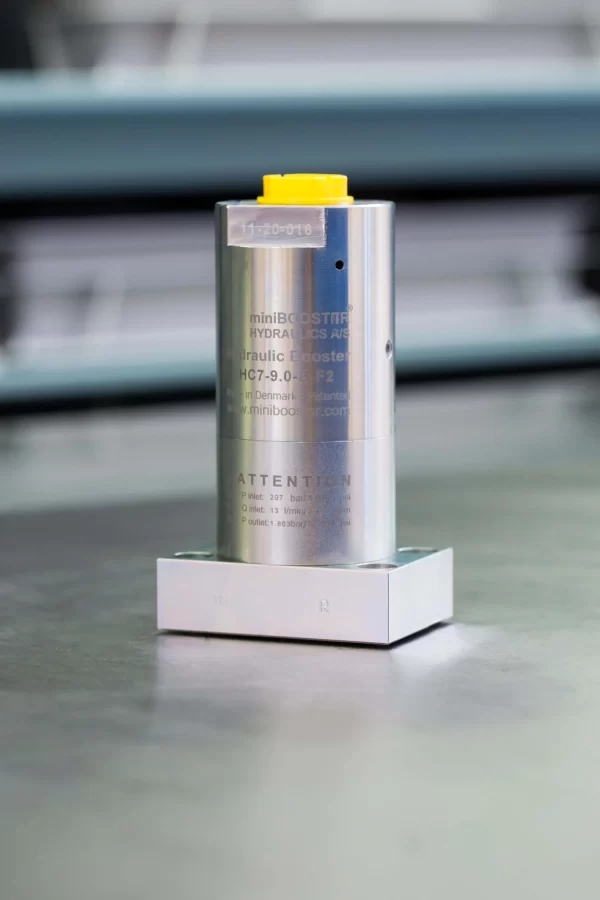

The HC7 – 7.6 – G – F is an ultra-compact high-pressure unit, weighing just 1.7 kg, designed for flange mounting on the low-pressure side. With a maximum pressure capability of 2,000 bar, it is a miniBOOSTER design, perfect for portable applications like power packs. Specifically tailored for use in confined spaces, this variant of the HC7 automatically adjusts and compensates for oil consumption to maintain high pressure. Outlet pressure adjustment is achieved by varying the supplied pressure. Featuring a range of high-pressure adapters, it offers versatility with different threads, starting from the M22x1.5 thread in the HP port, and can provide higher pressure upon request. Ideal for enhancing pressure in various hydraulic systems.

Additional information

Product Specifications

HC7-F versions: 10 different intensification factors
PIN: 20 – 207 bar
PH: 2,000 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Flange, manifold system miniBOOSTER pattern
Weight: 1.7 kg

Model Versions:

A model = no dump valve
B model = with dump valve
B model = direct proportionally controlled

Material certificate 3.1 on request

Flow Rate

Intensification Factor	Max. Intensified Outlet Flow (l/min)	Max. Inlet Flow (l/min)
4.0	2.0	14.0
5.0	1.6	14.0
6.6	1.3	13.0
7.6	1.1	13.0
9.0	0.9	13.0
10.3	0.8	12.0
13.0	0.6	12.0
16.0	0.5	12.0
20.0	0.3	12.0
25.0	0.2	12.0

Functions Desctiption

The system operates as follows: Oil is directed through the directional valve CV to the IN port, passing through check valves KV1, KV2, and DV to the high-pressure side H, allowing for maximum flow and a fast-forward function. Once the pump pressure is attained on the high-pressure side H, valves KV1, KV2, and DV close. The oscillating pump unit OP then maintains the end pressure automatically, stalling when the desired pressure is reached. In the presence of a pressure drop due to consumption or leakage on the high-pressure side, the OP valve ensures automatic operation to sustain the end pressure.

Function Diagram

Function Diagram HC7-7.6-G-F

Dimensions

Dimension drawing HC7-7.6-G-F

Connection Types

Connection	IN / R	H
F	Flange	M22 x 1.5

High-pressure Adapters

HC7-7.6-G-F

Ordering an HC7

Ordering example of an HC7-F with i = 13.0, H1 M22 x 1.5 and H2 9/16-18 UNF, DV incorporated and BSPP connections: HC7 – 13.0 – B – F2

Attention note!

High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.

The G-model is available in 2 variants, when ordering please specify accordingly:

Dynamic – low hysteresis: Ordering example of an HC7-F with i = 13.0 RV incorporated, H1 M22 x 1.5 and H2 9/16-18 UNF and BSPP connections: HC7 – 13.0 – G – F2
Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support. Ordering example of an HC7-F with i = 13.0 RV with opening ratio x.x incorporated, H1 M22 x 1.5 and H2 9/16-18 UNF and BSPP connections: HC7 – 13.0 – G – x.x – F2.

Model

HC7F

Intensification,i

Select factor
See flow rate table

Model Version.

Select type
A = without DV
B = with DV
G = with proportional valve

Connections.

See table below

Ordering Code	IN / R	H1	H2	H3
HC7-___-__-F1	Flange	M22 x 1.5	–	–
HC7-___-__-F2	Flange	M22 x 1.5	9/16-18 UNF	–
HC7-___-__-F3	Flange	M22 x 1.5	9/16-18 UNF	9/16-18 UNF
