Product Description

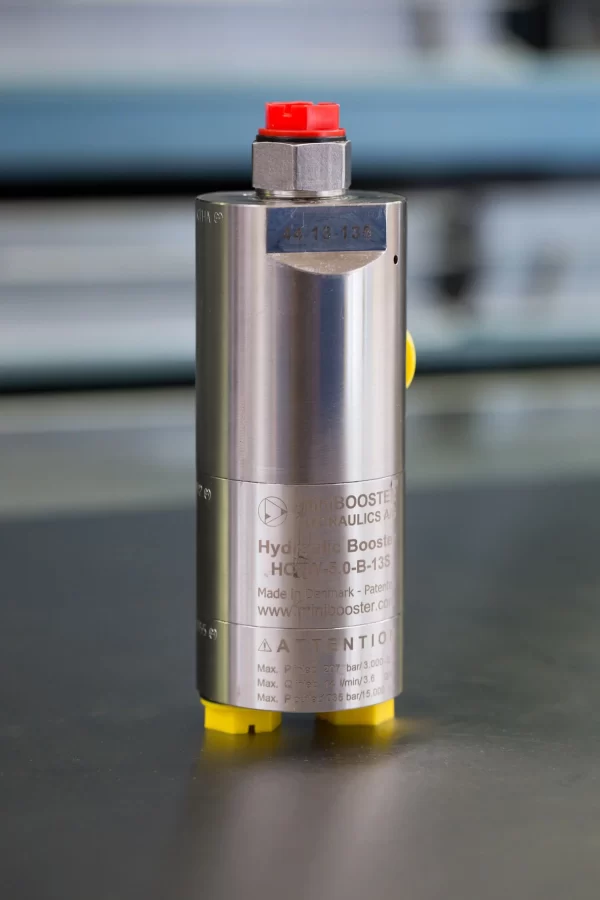

The HC7 – 4.0 – A – W a compact stainless steel 316L miniBOOSTER, delivers pressures up to 2,000 bar, weighing just 1.5 kg. Designed for thin (low viscosity) media, it’s perfect for portable applications like power packs. It elevates supplied pressure to higher outlet levels and automatically compensates for media consumption to maintain high pressure. Outlet pressure adjustment is achieved by varying the supplied pressure. Various high-pressure adapters allow for different thread options from the M22x1.5 thread in the HP port.

Additional information

Product Specifications

Versions: 10 different intensification factors
PIN: 20-207 bar
PH: 2,000 bar maximum for media > 5 cSt (mm²/s)
PH: 1,035 bar maximum for media < 5 cSt (mm²/s)
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Mounting: Inline tube
Weight: 1.5 kg

Model Versions:

A model = no dump valve
B model = with dump valve
G model = direct proportionally controlled

Material certificate 3.1 on request

Flow Rate

Intensification Factor	Max. Intensified Outlet Flow (l/min)	Max. Inlet Flow (l/min)
4.0	2.0	14.0
5.0	1.6	14.0
6.6	1.3	13.0
7.6	1.1	13.0
9.0	0.9	13.0
10.3	0.8	12.0
13.0	0.6	12.0
16.0	0.5	12.0
20.0	0.3	12.0
25.0	0.2	12.0

Functions Description

The system operates through a directional valve CV, guiding media to the IN port, then through check valves KV1, KV2, and DV to the high-pressure side H, ensuring maximum booster flow for rapid function. Once pump pressure is reached, valves KV1, KV2, and DV close, and the oscillating pump unit OP regulates end pressure. OP stops automatically at the desired pressure. It adjusts to maintain pressure if there’s a drop due to consumption or leakage.

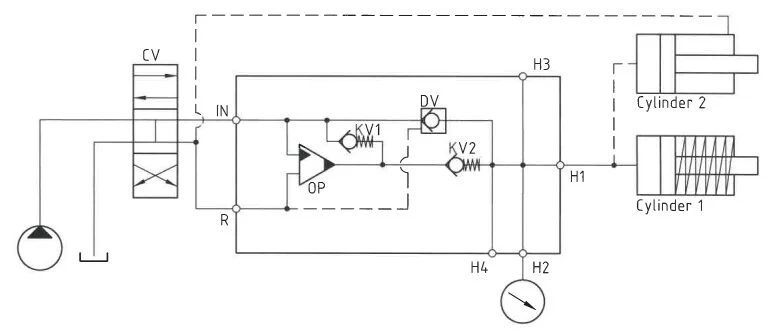

Function Diagram

Function Diagram HC7-4.0-A-W

Dimensions

Dimensions Diagram HC7-4.0-A-W

Connection Types

Connection	IN / R	H
1	1/4″ BSPP	M22 x 1.5
2	7/16-20″ UNF	M22 x 1.5

High Pressure adapters

Ordering an HC7W

Ordering example of an HC7W with i = 13.0, H1 M22 x 1.5 and H2 19/16-18 UNF.DV incorporated and BSPP connections:

HC7W – 13.0 – B – 12 for media < 5 cSt (mm2/s) tested in water HC7W – 13.0 – B – 12S for media > 5 cSt (mm2/s) tested in hydraulic oil

Attention note!

High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.

The G-model is available in 2 variants, when ordering please specify accordingly:

Dynamic – low hysteresis: Ordering example of an HC7W with i = 13.0 RV incorporated, H1 M22 x 1.5 and H2 9/16-18 UNF and BSPP connections: HC7W – 13.0 – G – 12S
Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support. Ordering example of an HC7W with i = 13.0 RV with opening ratio x.x incorporated, H1 M22 x 1.5 and H2 9/16-18 UNF and BSPP connections: HC7W – 13.0 – G – x.x – 12S

Model

HC7W

Intensification,i

Select factor
See flow rate table

Model Version.

Select type
A = without DV
B = with DV
G = with proportional valve

Connections.

Select thread
1 = BSPP, media < 5 cSt
1S = BSPP, media > 5 cSt

Ordering Code	IN / R	H1	H2	H3
HC7W-___-__-11	1/4″ BSPP	M22 x 1.5	–	–
HC7W-___-__-21	7/16-20 UNF	M22 x 1.5	–	–
HC7W-___-__-12	1/4″ BSPP	M22 x 1.5	9/16-18 UNF	–
HC7W-___-__-22	7/16-20 UNF	M22 x 1.5	9/16-18 UNF	–
HC7W-___-__-13	1/4″ BSPP	M22 x 1.5	9/16-18 UNF	9/16-18 UNF
HC7W-___-__-23	7/16-20 UNF	M22 x 1.5	9/16-18 UNF	9/16-18 UNF

Max. tightening torque BSPP

Column 1	IN / R
	1/4″ BSPP
With Stainless steel washer	4.0 da/Nm

Max. tightening torque UNF

Column 1	IN / R
	7/16-20
With O-ring	2.0 da/Nm
