Product Description

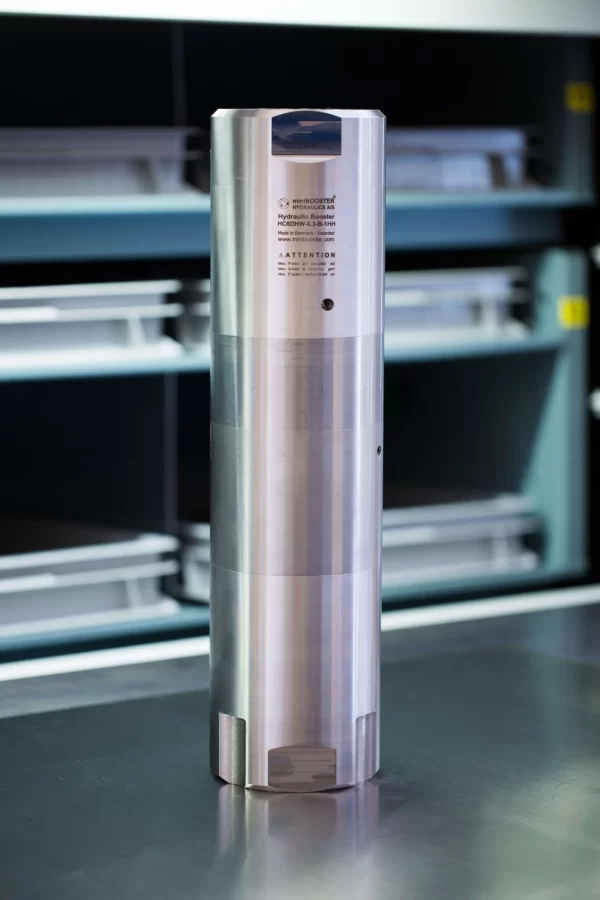

The HC6DH – 4.0 – A – W is a high flow dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 15.4 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6DHW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6DHW is a compact unit weighing 38.0 kg.

Additional information

Product Specifications

  • HC6DHW versions: 7 different intensification factors
  • PIN: 20-207 bar
  • PH: 1380 bar maximum
  • PRETURN: As low as possible (return pressure to tank)
  • POUTLET: PH = (PIN – PRETURN) x intensification factor
  • Mounting: Inline tube
  • Weight: 38.0 kg.

Model Versions:

  • A model = no dump valve
  • B model = with dump valve

Material certificate 3.1 on request

Flow Rate

Intensification Factor Max. Intensified Outlet Flow (l/min) Max. Inlet Flow (l/min)
4.0 15.4 50.0
4.9 12.5 50.0
6.3 9.7 50.0
8.2 7.5 50.0
11.1 4.5 50.0
13.2 3.8 50.0
16.0 3.1 50.0

Functions Description

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves 2x KV1, 2x KV2 and DV to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump units OP1 and OP2 by turns. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP1 and OP2 units will automatically operate to maintain the end pressure. It is possible to change the high-pressure connection H to the opposite end of the booster.

Function Diagram

Function Diagram HC6DH-4.0-A-W

Dimensions

Dimensions HC6DH-4.0-A-W

Connection Types

Connection IN / R H1 / H2 I1 / I2
1 1/2″ BSPP M30 x 1.5 1/8″ BSPP

High-pressure adapters

High-pressure adapter

Dynamic seals

Code Seal material Outlet pressure
HH H-PUR / H-PUR Max 1,380 bar HP
HP H-PUR / PEEK Max 1,380 bar HP

Ordering an HC6DHW

HC6DHW-…………..: with Bypass Valve (BPV)

Ordering example of an HC6HDW with i = 4.0, DV incorporated, BSPP connections and H-PUR dynamic seals:

  • HC6DHW – 4.0 – B – 1HH for media < 5 cSt (mm2/s) tested in water
  • HC6DHW – 4.0 – B – 1SHH for media > 5 cSt (mm2/s) tested in hydraulic oil3

Attention notes!

High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted

Model

  • HC6DHW

Intensification,i

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV
  • B = with DV

Connections.

  • Select thread
  • 1 = BSPP, media < 5 cSt
  • 1S = BSPP, media > 5 cSt

Dynamic seals.

  • Select seal type
  • See dynamic seal table

Max. Tightening Torque BSPP

IN / R D1/D2
1/2″ BSPP
1/8″ BSPP
With stainless steel washer 13.0 da/Nm 2.0 da/Nm
