MiniBOOSTER Hydraulic Intensifier HC6D2W-1.5-A
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

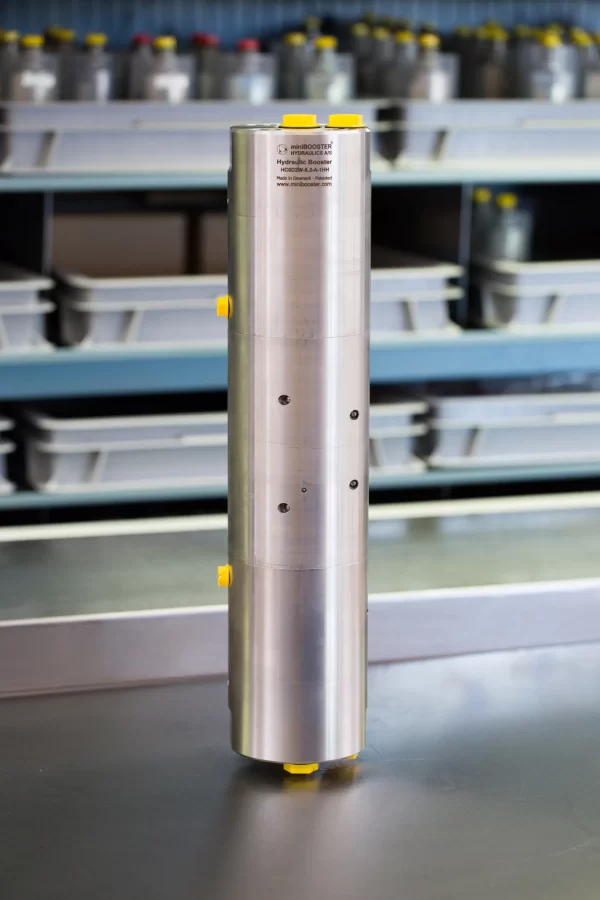

The HC6D2W – 1.5 – A is a stainless steel 316L dual media miniBOOSTER unit capable of delivering a maximum flow of 28 l/min at the high-pressure end. Similar to other miniBOOSTER models, it elevates supplied pressure to achieve a higher outlet pressure and autonomously compensates for oil consumption to maintain high pressure. Outlet pressure adjustment is achieved by varying the supplied pressure. Despite its flow capability, the HC6D2W maintains a compact design, weighing just 24 kg.
Additional information
Product Specifications
- HC6D2 versions: 9 different intensification factors
- PIN: 20 – 207 bar
- PH: 800 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Drain connections: Max. 10 bar
- Mounting: Inline tube
- Weight: 24.0 kg.
Model Versions:
- A model = no dump valve
Material certificate 3.1 on request
Flow Rate
Intensification factor (i) | Max. intensified outlet flow (l/min) | Max. inlet flow (l/min) |
---|---|---|
1.0 | 28.1 | 30.0 |
1.2 | 24.5 | 30.0 |
1.5 | 21.9 | 35.0 |
2.0 | 17.0 | 35.0 |
3.0 | 9.8 | 40.0 |
3.9 | 8.7 | 40.0 |
5.2 | 6.5 | 45.0 |
7.1 | 4.8 | 45.0 |
10.1 | 3.4 | 45.0 |
Functions Description
The system functions as follows: Media 1 flows freely through the IN port, driving the LP pistons via bistable valve BV1. Simultaneously, Media 2 is drawn from the suction inlet IN through 2 x KV1 check valves and pumped via 2 x KV2 to the high-pressure side H. This setup maximizes booster flow, enabling a fast-forward function. Automatic stall occurs upon reaching the end pressure on side H. If a pressure drop arises due to consumption or leakage, HP1 and HP2 units activate automatically to sustain the end pressure.
Function Diagram
Dimensions
Dimension Diagram HC6D2W-1.5-A
Connection Types
Connection | IN / R | H1 / H2 | S1 / S2 | D1 / D2 |
---|---|---|---|---|
1 | 1/2″ BSPP | 1/2″ BSPP | 1/2″ BSPP | 1/8″ BSPP |
Dynamic seals
Code | Seal material media 1 / 2 | Outlet pressure |
---|---|---|
HH | H-PUR / H-PUR | Max 800 bar HP |
HE | H-PUR / EPDM | Max 500 bar HP |
HP | H-PUR / PEEK | Max 800 bar HP |
HEP | H-PUR/EPDM / PEEK | Max 800 bar HP |
EP | EPDM / PEEK | Max 800 bar HP |
EE | EPDM / EPDM | Max 500 bar HP |
Ordering an HC6D2W
Ordering example of an HC6D2W with i = 3.9, with BSPP connections and H-PUR dynamic seals:
HC6D2W – 3.9 – A – 1HH
Model
- HC6D2
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
Connections.
- Select thread
- 1 = BSPP
Dynamic seals
- Select seal type
- See dynamic seal table
Max. tightening torque BSPP
IN / R | IN / R | S1 / S2 | D1 / D2 | |
---|---|---|---|---|
1/2″ BSPP | 1/2″ BSPP | 1/2″ BSPP | 1/8″ BSPP | |
With stainless steel washer | 13.0 da/Nm | 13.0 da/Nm | 13.0 da/Nm | 2.0 da/Nm |
