MiniBOOSTER Hydraulic Intensifier HC6D-8.2-A-W
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

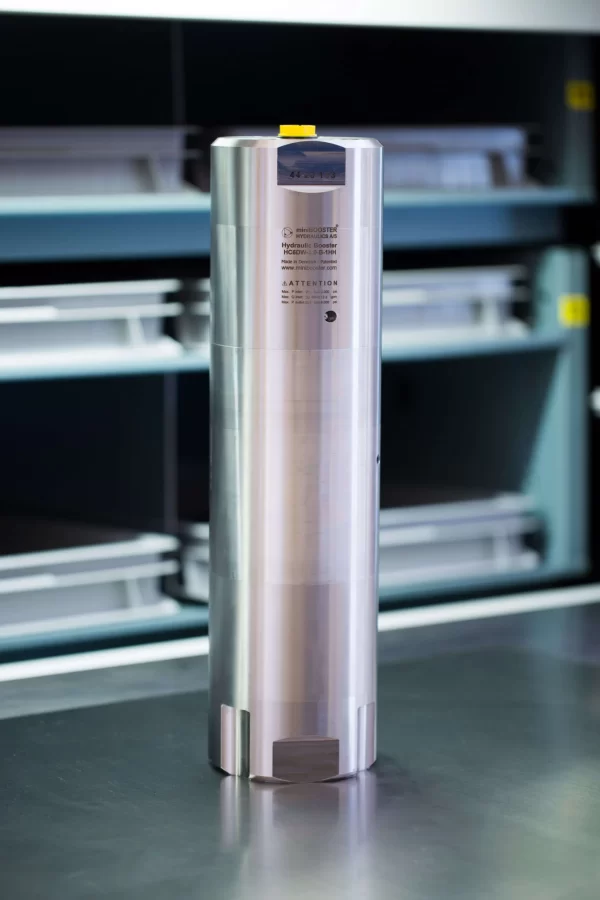

The HC6D – 8.2 – A – W is a compact, high-flow, dual-acting miniBOOSTER unit made of stainless steel 316L, capable of delivering up to 38.4 l/min flow at high pressure. It automatically adjusts to maintain high pressure by compensating for oil consumption. Adjustment of outlet pressure is achieved by varying supplied pressure. Weighing 36.0 kg, it’s efficient and versatile for various applications.
Additional information
Product Specifications
- HC6DW versions: 14 different intensification factors
- PIN: 20-207 bar
- PH: 800 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Mounting: Inline tube
- Weight: 36.0 kg
Model Versions:
- A model = no dump valve
- B model = with dump valve
Material certificate 3.1 on request
Flow Rate
| Intensification factor (i) | Max. intensified outlet flow (l/min) | Max. inlet flow (l/min) |
|---|---|---|
| 1.5 | 38.4 | 50.0 |
| 1.8 | 33.7 | 50.0 |
| 2.0 | 29.0 | 50.0 |
| 2.2 | 26.9 | 50.0 |
| 2.5 | 24.7 | 50.0 |
| 3.0 | 21.7 | 50.0 |
| 3.3 | 18.6 | 50.0 |
| 4.0 | 15.4 | 50.0 |
| 4.9 | 12.5 | 50.0 |
| 6.3 | 9.7 | 50.0 |
| 8.2 | 7.5 | 50.0 |
| 11.1 | 4.5 | 50.0 |
| 13.2 | 3.8 | 50.0 |
| 16.0 | 3.1 | 50.0 |
Functions Description
The system operates by directing oil through a directional valve and check valves to the high-pressure side, maximizing flow for fast-forward function. Once pump pressure is reached, valves close, and oscillating pump units maintain end pressure. Automatic stall occurs upon reaching desired pressure. The system adapts to pressure drops, adjusting automatically. Flexibility is enabled by the option to change the high-pressure connection to the opposite end of the booster.
Function Diagram
Dimensions
Connection Types
| Connection | IN / R | H1 / H2 | I1 / I2 |
|---|---|---|---|
| 1 | 1/2″ BSPP | 1/2″ BSPP | 1/8″ BSPP |
High Pressure adapters
Dynamic seals
| Code | Seal material | Outlet pressure |
|---|---|---|
| HH | H-PUR / H-PUR | Max 800 bar HP |
| EE | EPDM / EPDM | Max 500 bar HP |
Ordering an HC6DW
Ordering example of an HC6DW with i = 4.0, DV incorporated, BSPP connections and H-PUR dynamic seals:
HC6DW – 4.0 – B – 1HH for media < 5 cSt (mm2/s) tested in water HC6DW – 4.0 – B – 1SHH for media > 5 cSt (mm2/s) tested in hydraulic oil
Attention note!
If high-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.
Model
- HC6DW
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV
Connections.
- Select thread
- 1 = BSPP, media < 5 cSt
- 1S = BSPP, media > 5 cSt
Dynamic seals.
- Select seal type
- See dynamic seal table
Max. tightening torque BSPP
| IN / R | H1 / H2 | D1 / D2 | |
|---|---|---|---|
| 1/2″ BSPP | 1/2″ BSPP | 1/8″ BSPP | |
| with stainless steel washer / seal | 13.0 da/Nm | 13.0 da/Nm | 2.0 da/Nm |
