Product Description

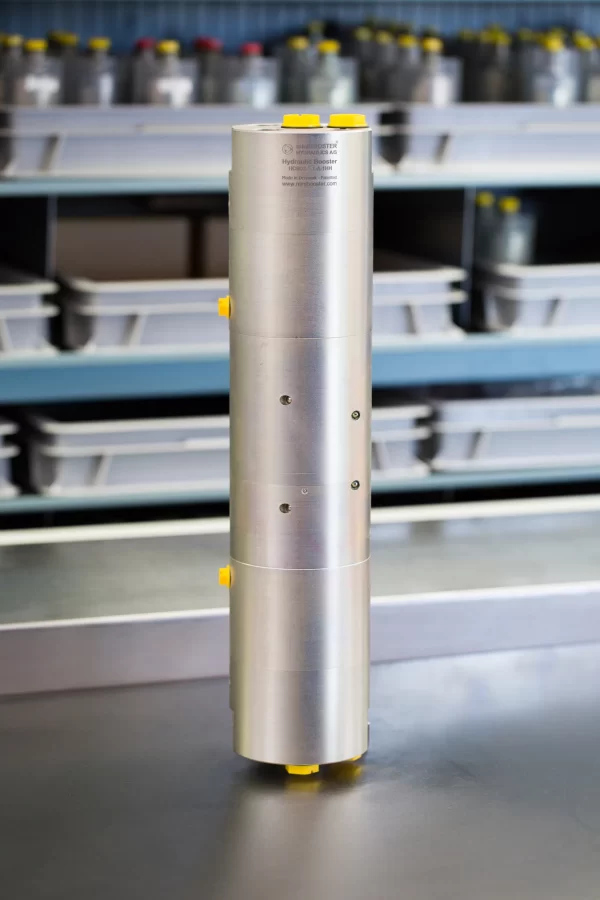

The HC6D – 10.1 – A – 2 is a dual media unit designed to deliver a maximum flow of 36.5 l/min at high-pressure output. Similar to other miniBOOSTER models, it elevates supplied pressure to a higher outlet pressure and autonomously adjusts to compensate for oil consumption, ensuring maintenance of high pressure. Adjustment of outlet pressure is achieved by regulating the supplied pressure. Despite its flow capacity, the HC6D2 maintains a compact design, weighing just 24 kg.

Additional information

Product Specifications

  • HC6D2 versions: 9 different intensification factors
  • PIN: 20 – 207 bar
  • PH: 800 bar maximum
  • PRETURN: As low as possible (return pressure to tank)
  • POUTLET: PH = (PIN – PRETURN) x intensification factor
  • Drain connections: Max. 10 bar
  • Mounting: Inline tube
  • Weight: 24.0 kg.

Model Versions:

  • A model = no dump valve

Material certificate 3.1 on request

Flow Rate

Intensification factor (i) Max. intensified outlet flow (l/min) Max. inlet flow (l/min)
1.0 36.5 40.0
1.2 32.0 40.0
1.5 28.5 45.0
2.0 22.1 45.0
3.0 12.7 50.0
3.9 11.3 50.0
5.2 8.4 55.0
7.1 6.2 55.0
10.1 4.4 55.0

Functions Description

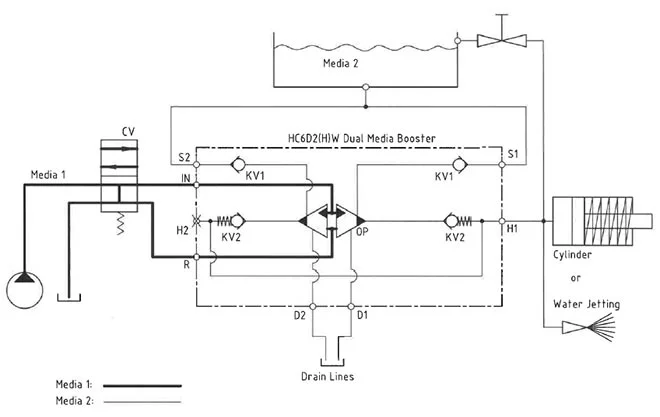

The system operates as follows: Media 1 enters through the IN port, flowing freely through bistable valve BV1 to drive the LP pistons. Simultaneously, Media 2 is drawn through check valves KV1, then pumped via KV2 to the high-pressure side H. This setup maximizes flow through the booster, enabling a fast-forward function. Automatic stall occurs when the end pressure on side H is reached. Should a pressure drop occur due to consumption or leakage, HP1 and HP2 units activate automatically to maintain end pressure.

Function Diagram

Function Diagram HC6D-10.1-A-2

Dimensions

Function Diagram HC6D-10.1-A-2

Connection Types

Connection IN / R H1 / H2 S1 / S2 D1 / D2
1 1/2″ BSPP 1/2″ BSPP 1/2″ BSPP 1/8″ BSPP



Dynamic seals

Code Seal material media 1 / 2 Outlet pressure
HH H-PUR / H-PUR Max 800 bar HP
HP H-PUR / PEEK Max 800 bar HP
EP EPDM / PEEK Max 800 bar HP
HE H-PUR / EPDM Max 500 bar HP
EE EPDM / EPDM Max 500 bar HP

Ordering an HC6D2

Ordering example of an HC6D2 with i = 3.9, with BSPP connections and H-PUR dynamic seals:

HC6D2 – 3.9 – A – 1HH

Model

  • HC6D2

Intensification,i

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV

Connections.

  • Select thread
  • 1 = BSPP

Dynamic seals

  • Select seal type
  • See dynamic seal table

Max. tightening torque BSPP

IN / R H1 / H2 S1 / S2 D1 / D2
1/2″ BSPP 1/2″ BSPP 1/2″ BSPP 1/8″ BSPP
 With steel washer 13.0 da/Nm 13.0 da/Nm 13.0 da/Nm 2.0 da/Nm
With cutting edge 13.0 da/Nm 13.0 da/Nm 13.0 da/Nm 2.0 da/Nm
