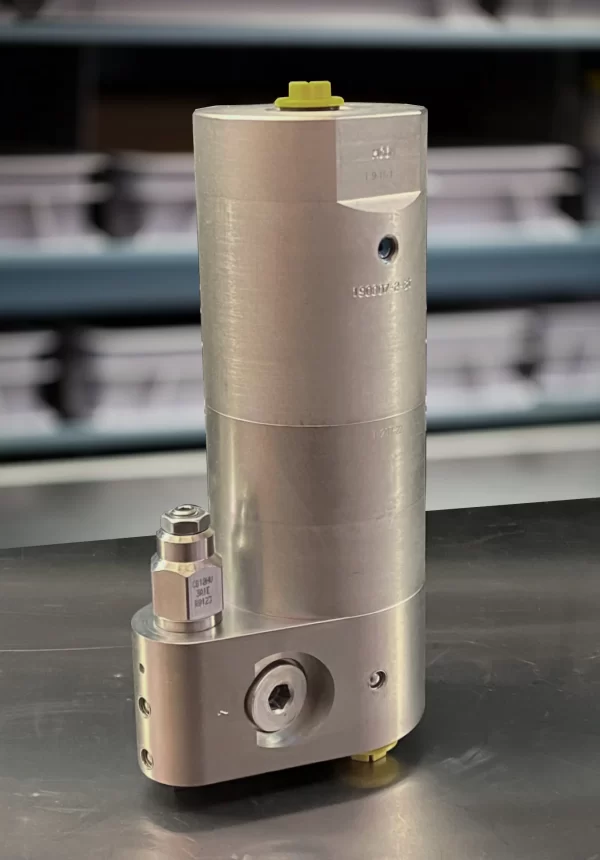

MiniBOOSTER Hydraulic Intensifier HC65-1.5-B-1
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The HC65 – 1.5 – B – 1 is a lightweight unit at 11.0 kg/ 24.2 lbs, designed for applications requiring high-pressure maintenance. It features a counterbalance valve, facilitating rapid cylinder movement by directing full inlet flow through the booster until the set pressure is achieved. Upon reaching high-pressure side H, automatic stall occurs, with continuous compensation for oil consumption to maintain pressure. Outlet pressure adjustment is achieved by varying the supplied pressure, with an optional orifice available to prevent overspeeding.
Additional information
Product specification
- HC65 versions: 9 different intensification factors.
- PIN: 20 – 207 bar.
- PH: 800 bar maximum.
- PRETURN: As low as possible (return pressure to tank).
- POUTLET: PH = (PIN – PRETURN) x intensification factor.
- Mounting: Inline tube.
- Weight: 11.0 kg/ 24.2 lbs.
Model versions
- A model = no dump valve.
- B model = with dump valve.
Material certificate 1.5 on request
Flow Rates
Intensification Factor i | Max.Intensified Outlet flow i/min | Max. Inlet flow i/min |
---|---|---|
1.3 | 20.3 | 50.0 |
1.5 | 28.3 | 80.0 |
1.9 | 22.3 | 80.0 |
2.5 | 17.0 | 80.0 |
3.3 | 12.8 | 80.0 |
4.0 | 10.6 | 80.0 |
4.9 | 8.6 | 80.0 |
6.3 | 6.7 | 80.0 |
8.2 | 5.2 | 80.0 |
Function description
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the internal check valves to the high-pressure side H. When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
Function diagram
Dimension
Dimension drawing HC65-1.5-B-1
Connection Types
Connection | IN/R | H |
---|---|---|
1 | 1/2″ BSPP | 1/2″ BSPP |
Ordering an HC65
Ordering example of an HC65 with i = 1.5, DV incorporated and BSPP connections: HC65 – 1.5 – B – 1
Attention note!
Valve pre-settings are required, please specify when ordering the intensifier.
Model
- HC65
Intensification,
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV
Connections
- Select thread
- 1 = BSPP
Max. tightening torque BSPP
IN / R | H | |
1/2″ BSPP | 1/2″ BSPP | |
with steel washer | 13.0 da/Nm | 13.0 da/Nm |
with cutting edge | 13.0 da/Nm | 13.0 da/Nm |
