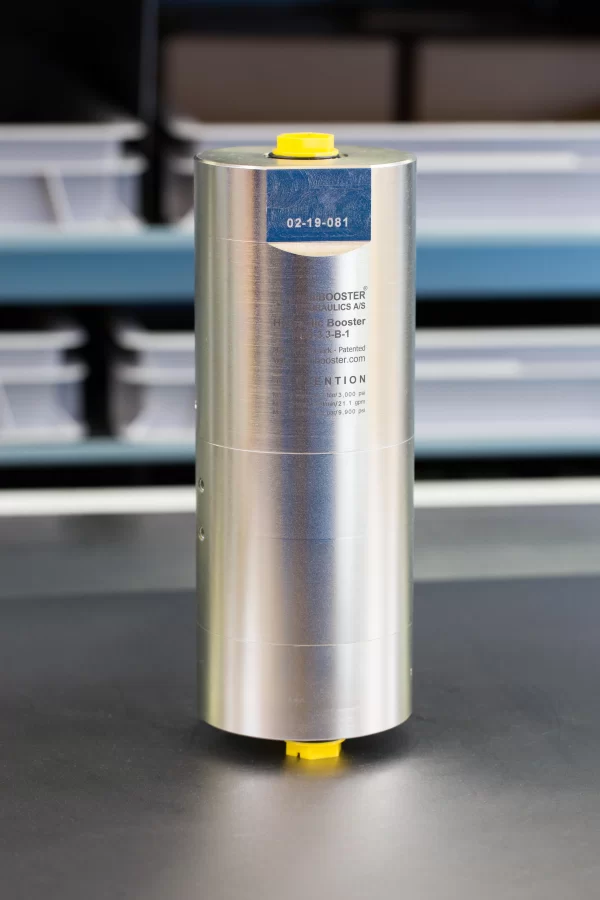

MiniBOOSTER Hydraulic Intensifier HC6-2.5-G
MiniBOOSTER Hydraulic Intensifier HC6-4.9-G

MiniBOOSTER Hydraulic Intensifier HC6-3.3-G

Contact us for Pricing
Category: Tag:
  • Payment by invoice possible
  • Not currently in stock, contact us for factory lead times
  • Payment by invoice possible
  • In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
  • Del Rey is proud to be the exclusive distributor of Waagene products
  • Payment by invoice possible
  • Low quantities typically kept on hand; please contact us for availability at lead time
  • Authorized MiniBOOSTER distributor & hydraulic excellence partner

Product Description

The HC6 – 3.3 – G is a compact high-flow unit, delivering up to 28.3 l/min at high pressure. It functions like other miniBOOSTER models, boosting supplied pressure to maintain high outlet pressure while compensating for oil consumption. Outlet pressure adjustment is achieved by varying supplied pressure. Despite its high flow capacity, the HC6 weighs only 9.5 kg.

Additional information

Product Specifications

  • HC6 versions: 9 different intensification factors
  • PIN: 20 – 207 bar
  • PH: 800 bar maximum
  • PRETURN: As low as possible (return pressure to tank)
  • POUTLET: PH = (PIN – PRETURN) x intensification factor
  • Mounting: Inline tube
  • Weight: 9.5 kg

Model Versions:

  • A model = no dump valve
  • B model = with dump valve
  • G model = direct proportionally controlled

Material certificate 3.1 on request

Flow Rate

Intensification Factor (i) Max. Intensified Outlet Flow (l/min) Max. Inlet Flow (l/min)
1.3 20.3 50.0
1.5 28.3 80.0
1.9 22.3 80.0
2.5 17.0 80.0
3.3 12.8 80.0
4.0 10.6 80.0
4.9 8.6 80.0
6.3 6.7 80.0
8.2 5.2 80.0

Functions Desctiption

The hydraulic system initially directs oil via directional valve CV to the IN port, flowing through check valves KV1, KV2, and DV to the high-pressure side H, enabling maximum flow for fast-forward operation. Once pump pressure is reached, valves close, and the oscillating pump unit OP maintains end pressure, adjusting for any pressure drops.

Function Diagram

Function Diagram HC6-3.3-G

Dimensions

Dimension drawing HC6-3.3-G

Connection Types

Connection IN / R H
1 1/2″ BSPP 1/2″ BSPP

Ordering an HC6

Ordering example of an HC6 with i = 4.0, DV incorporated and BSPP connections: HC6 – 4.0 – B – 1

Attention note!

The G-model is available in 2 variants, when ordering please specify accordingly:

  • Dynamic – low hysteresis: Ordering example of an HC6 with i = 4.0 RV incorporated and BSPP connections: HC6 – 4.0 – G – 1
  • Ordering example of an HC6 with i = 4.0 RV with opening ratio x.x incorporated and BSPP connections: HC6 – 4.0 – G – x.x – 1.

Model

  • HC6

Intensification,i

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV
  • B = with DV
  • G = with proportional valve

Connections.

  • Select thread
  • 1 = BSPP

Max. Tightening Torque BSPP

IN / R H
1/2″ BSPP 1/2″ BSPP
With steel washer 13.0 da/Nm 13.0 da/Nm
With cutting edge 13.0 da/Nm 13.0 da/Nm
