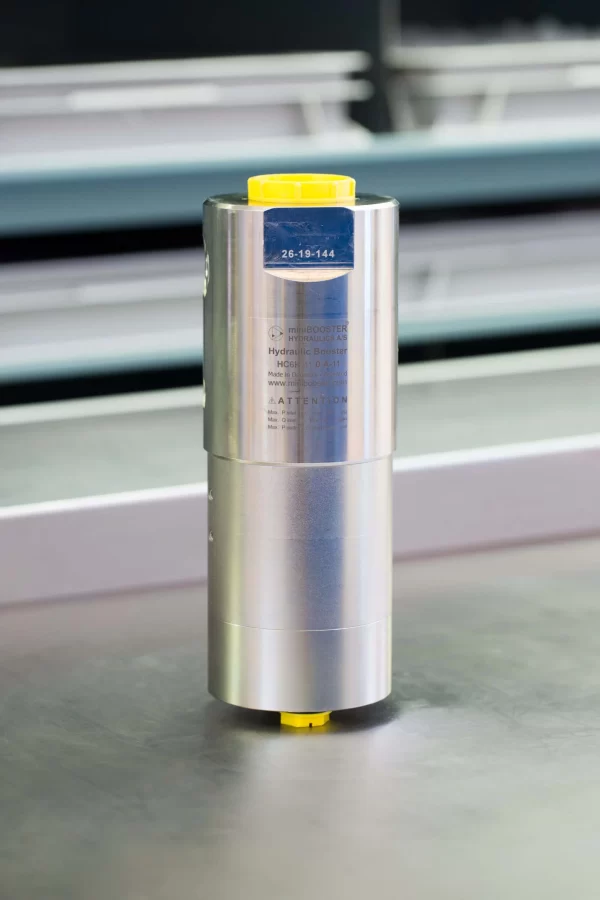

MiniBOOSTER Hydraulic Intensifier HC6-16.0-B-H
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The HC6 – 16.0 – B – H is an ultra-high-pressure unit that can deliver up to 5,000 bar and a flow of 1.7 liters per minute at the high-pressure end. Similar to other miniBOOSTER models, the HC6H boosts supplied pressure to achieve a higher outlet pressure and automatically adjusts for oil consumption to sustain the high pressure. Adjustment of the outlet pressure is achieved by modifying the supplied pressure. Despite its powerful capabilities, the HC6H remains compact, weighing only 11.0 kg.
Additional information
Product Specifications
- HC6H version: 8 different intensification factors
- PIN: 20 – 207 bar
- PH: 5,000 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Mounting: Inline tube
- Weight: 11.0 kg
Model Versions:
- A model = no dump valve
- B model = with dump valve, up to 3,000 bar
Material certificate 3.1 on request
Flow Rate
| Intensification factor | Max. intensified outlet flow (l/min) | Max. inlet flow (l/min) |
|---|---|---|
| 6.3 | 6.7 | 80.0 |
| 8.2 | 5.2 | 80.0 |
| 9.5 | 4.5 | 80.0 |
| 11.0 | 3.9 | 80.0 |
| 13.0 | 3.3 | 80.0 |
| 16.0 | 2.7 | 80.0 |
| 20.0 | 2.1 | 80.0 |
| 25.0 | 1.7 | 80.0 |
Functions Desctiption
This system operates by directing oil flow through a directional valve to the IN port. The oil flows through check valves to the high-pressure side, enabling maximum flow for fast-forward function. Once pump pressure is reached, the check valves close, and end pressure is maintained by an oscillating pump unit. The unit stops automatically when end pressure is reached and adjusts to counteract pressure drops on the high-pressure side.
Function Diagram
Dimensions
Connection Types
| Connection | IN / R | H |
|---|---|---|
| 1 | 1/2″ BSPP | M42 x 1.5 |
Ordering an HC6H
Ordering example of an HC6H with i = 25.0, H1 M42x1.5 and H2 1 1/8-12 UNF without DV and BSPP connections: HC6H – 25.0 – A – 12
Attention note!
- High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
- High-pressure adapters will be factory mounted.
Model
- HC6H
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV, up to 3000 bar
Connections.
- See table below
| Ordering code | IN / R | H1 | H2 |
|---|---|---|---|
| HC6H-___-__-11 | 1/2″ BSPP | M42 x 1.5 | – |
| HC6H-___-__-12 | 1/2″ BSPP | M42 x 1.5 | 1 1/8″-12 UNF |
Max. Tightening Torque BSPP
| IN / R | |
| 1/2″ BSPP | |
| with steel washer | 13.0 da/Nm |
| with cutting edge | 13.0 da/Nm |
