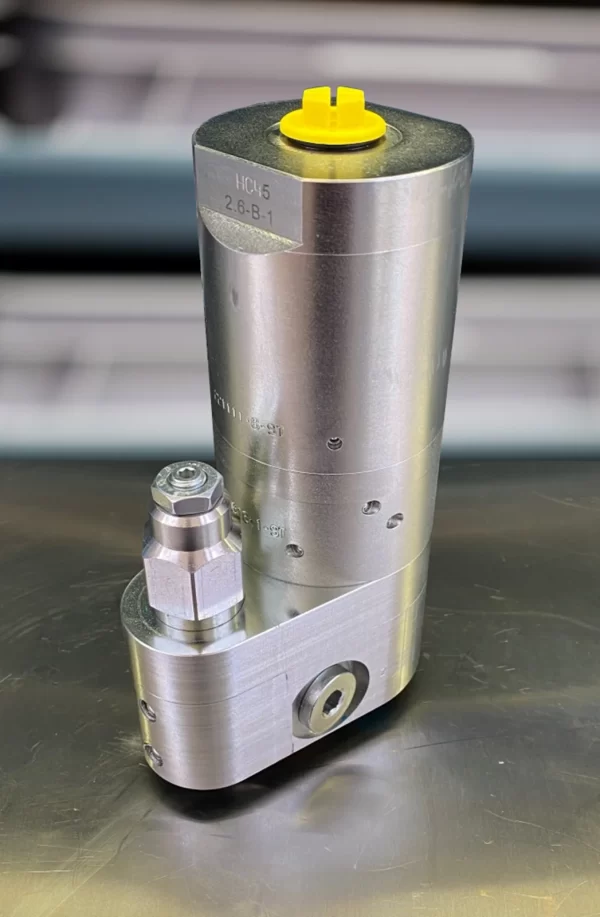

MiniBOOSTER Hydraulic Intensifier HC45-2.6-A-1
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The HC45 – 2.6 – A – 1 is a lightweight unit weighing just 4.7 kg/ 10.3 lbs, designed for applications requiring high-pressure maintenance. Featuring a counterbalance valve, it enables swift cylinder movement by directing full inlet flow through the booster until reaching the set pressure. Once achieved, the booster oscillates. Automatic stall occurs upon reaching high-pressure side H, with continuous compensation for oil consumption. Outlet pressure adjustment is facilitated by varying the supplied pressure. Additionally, an optional orifice can be installed in the R-port to prevent overspeeding.
Additional information
Product specification
- HC45 versions: 11 different intensification factors.
- PIN: 20–207 bar.
- PH: 800 bar maximum.
- PRETURN: As low as possible (return pressure to tank).
- POUTLET: PH = (PIN – PRETURN) x intensification factor.
- Mounting: Inline tube.
- Weight: 4.7 kg/ 10.3 lbs.
Model versions
-
- A model = no dump valve.
- B model = with dump valve.
Material certificate 2.6 on request
Flow Rates
| Intensification Factor i | Max.Intensified Outlet flow i/min | Max. Inlet flow i/min |
|---|---|---|
| 1.3 | 16.3 | 40.0 |
| 1.5 | 14.1 | 40.0 |
| 1.8 | 11.8 | 40.0 |
| 2.1 | 10.1 | 40.0 |
| 2.6 | 8.1 | 40.0 |
| 2.8 | 7.6 | 40.0 |
| 3.2 | 6.5 | 40.0 |
| 4.3 | 5.0 | 40.0 |
| 5.1 | 4.1 | 40.0 |
| 6.3 | 3.4 | 40.0 |
| 9.8 | 2.2 | 40.0 |
Function description
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the internal check valves to the high-pressure side H. When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.
Function diagram
Dimension
Dimension drawing HC45-2.6-A-1
Connection Types
| Connection | IN/R | H |
|---|---|---|
| 1 | 3/8″ BSPP | 1/2″ BSPP |
Ordering an HC45
Ordering example of an HC45 with i = 2.6, DV incorporated and BSPP connections: HC45 – 2.6 – A – 1
Attention note!
Valve pre-setting is required, please specify when ordering the intensifier.
Model
- HC45
Intensification,
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV
Connections
- Select thread
- 1 = BSPP
Max. tightening torque BSPP
| IN / R | H | |
| 3/8″ BSPP | 1/2″ BSPP | |
| with steel washer | 6.0 da/Nm | 13.0 da/Nm |
| with cutting edge | 6.0 da/Nm | 13.0 da/Nm |
