MiniBOOSTER Hydraulic Intensifier HC3-20.0-A-I

Product successfully added to the Quote List

Product Description

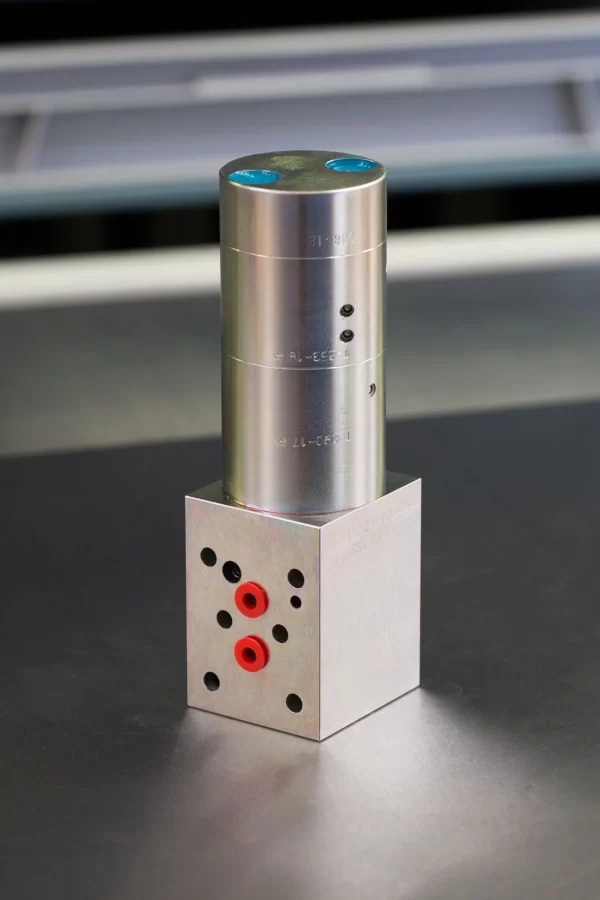

The HC3 – 20.0 – A – I, a variant of the HC3, is tailored for high-pressure applications on the B port, specifically engineered for NG6 (D03) stacking manifold systems. This compact unit, weighing a mere 2.5 kg/ 5.5 lbs, offers a maximum outlet pressure of 500 bar in standard versions. Precise outlet pressure adjustments are achieved by varying the supplied pressure, ensuring optimal performance in a lightweight design.

Additional information

Product specification

HC3 – I versions: 15 different intensification factors.
PIN: 20 – 207 bar.
PH: 500 bar maximum.
PRETURN: As low as possible (return pressure to tank).
POUTLET: PH = (PIN – PRETURN) x intensification factor.
Mounting: NG6 (D03) stacking manifold system.
Weight: 2.5 kg/ 5.5 lbs.

Model versions

A model = no dump valve.
B model = with dump valve.
G model = direct proportionally controlled.

Material certificate 20.0 on request

Flow Rates

Intensification Factor i	Max.Intensified Outlet flow i/min	Max. Inlet flow i/min
1.2	3.5	8.0
1.5	4.2	12.0
2.0	3.2	12.0
2.2	2.9	12.0
2.5	2.7	13.0
2.8	2.5	13.0
3.2	2.5	15.0
4.0	2.0	14.0
5.0	1.6	14.0
6.6	1.3	13.0
9.0	0.9	13.0
13.0	0.6	12.0
16.0	0.5	12.0
20.0	0.3	12.0
25.0	0.2	12.0

Function description

The basic operation is illustrated in the function diagram. The oil is fed through the connecting plate to the control valve to the IN port of the HC3 flowing freely through check valves KV1, KV2 and DV to the high-pressure side H. From the high-pressure side H, oil is fed to port B on the connecting plate. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function diagram

Function-Diagram HC3-20.0-A-I

Dimension

Dimension drawing HC3-20.0-A-I

Ordering an HC3-I

Ordering example of an HC3 – I with i = 20.0, DV incorporated: HC3 – 20.0 – A – I

Attention note!

Dynamic – low hysteresis: Ordering example of an HC3 with i = 20.0 RV incorporated and BSPP connections: HC3 – 20.0 – A – I.
Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support.

Model

Intensification,i

Select factor
See flow rate table

Model Version.

Select type
A = without DV
B = with DV
G = with proportional valve

Connections.
