MiniBOOSTER Hydraulic Intensifier HC3-1.5-B-PVG32
MiniBOOSTER Hydraulic Intensifier HC3-2.2-B-PVG32

MiniBOOSTER Hydraulic Intensifier HC3-2.0-B-PVG32

Contact us for Pricing
Category: Tag:
  • Payment by invoice possible
  • Not currently in stock, contact us for factory lead times
  • Payment by invoice possible
  • In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
  • Del Rey is proud to be the exclusive distributor of Waagene products
  • Payment by invoice possible
  • Low quantities typically kept on hand; please contact us for availability at lead time
  • Authorized MiniBOOSTER distributor & hydraulic excellence partner

Product Description

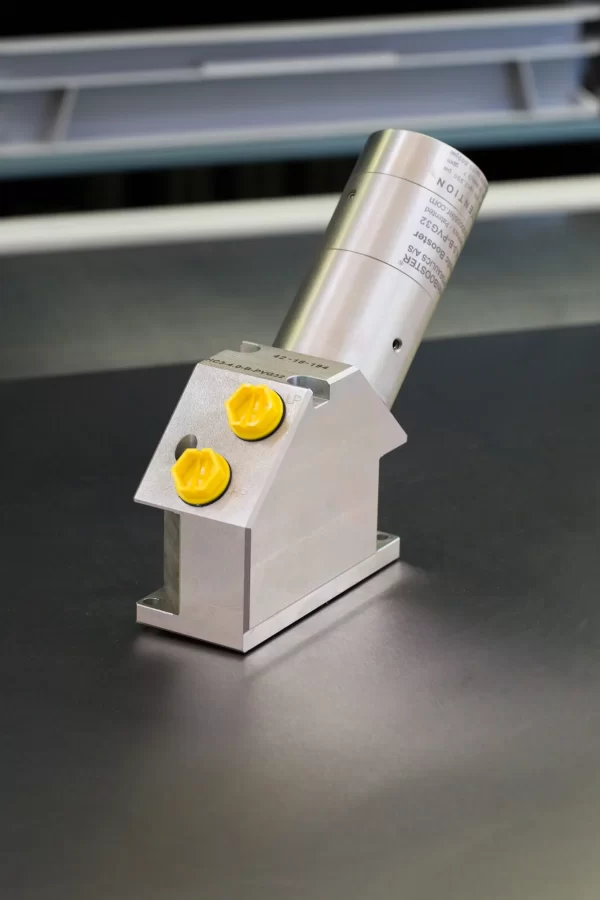

The HC3 – 2.0 – B – PVG32, a compact 4.0 kg/ 8.8 lbs unit, excels in applications demanding high-pressure solutions. This versatile unit elevates supplied pressure to achieve higher outlet pressures while seamlessly compensating for oil consumption, ensuring sustained high pressure. Precise outlet pressure adjustments are effortlessly achieved by varying the supplied pressure, making it an ideal choice for diverse applications requiring efficient pressure management.

Additional information

Product specification

  • HC3 – PVG32 versions: 15 different intensification factors.
  • PIN: 20–207 bar.
  • PH: 800 bar maximum.
  • PRETURN: As low as possible (return pressure to tank).
  • POUTLET: PH = (PIN – PRETURN) x intensification factor.
  • Mounting: PVG32; PVB basic valve: 157B6849, Spool: 157B7000.
  • Weight: 4.0 kg/ 8.8 lbs.

Model versions

  • B model = with dump valve.

Material certificate 2.0 on request

Flow Rates

Intensification Factor i Max.Intensified Outlet flow i/min Max. Inlet flow i/min
1.2 3.5 8.0
1.5 4.2 12.0
2.0 3.2 12.0
2.2 2.9 12.0
2.5 2.7 13.0
2.8 2.5 13.0
3.2 2.5 15.0
4.0 2.0 14.0
5.0 1.6 14.0
6.6 1.3 13.0
9.0 0.9 13.0
13.0 0.6 12.0
16.0 0.5 12.0
20.0 0.3 12.0
25.0 0.2 12.0

Function description

The basic operation is illustrated in the function diagram. The oil is fed through the proportional valve PVG32 to the P-port in the HC3-PVG32 flowing freely through check valves KV1, KV2 and DV to the high-pressure side HP. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high-pressure side HP, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function diagram

Function-Diagram HC3-2.0-B-PVG32

Dimension

Dimension drawing HC3-2.0-B-PVG32

Ordering an HC3-PVG32

Ordering example of an HC3 – PVG32 with i = 2.0, DV incorporated: HC3 – 2.0 – B – PVG32

Model

  • HC3

Intensification,i

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • B = with DV

Connections.

  • PVG32
