Product Description

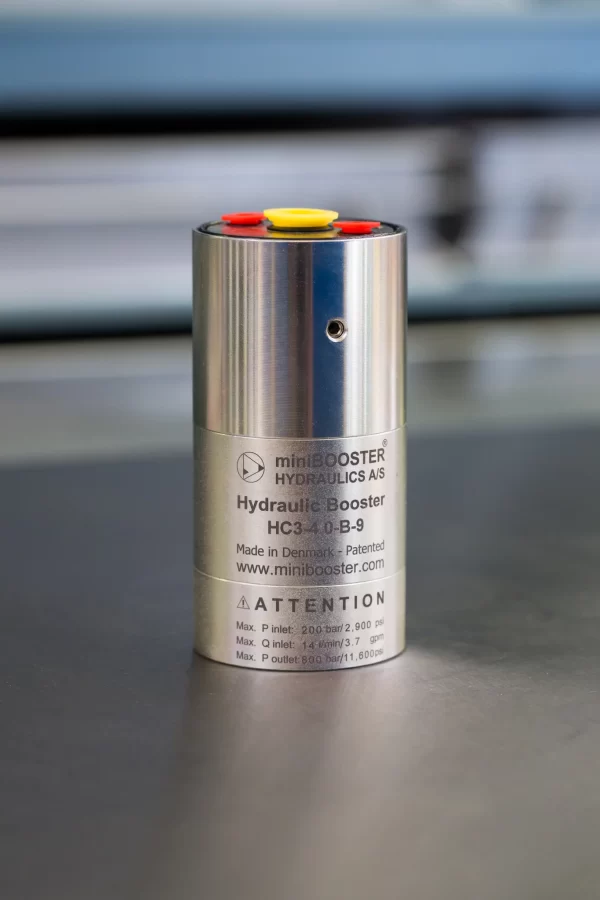

HC3 – 1.2 – G – 9 is a compact hydraulic cartridge miniBOOSTER unit weighing only 1.3 kg/ 2.8 lbs. It is ideal for use in applications where it is desirable to mount the unit on or in a manifold, cylinder, or other device. The HC3-9 raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure.

Additional information

Product specification

  • HC3-9 versions: 15 different intensification factors.
  • PIN: 20–207 bar.
  • PH: 800 bar maximum.
  • PRETURN: As low as possible (return pressure to tank).
  • POUTLET: PH = (PIN – PRETURN) x intensification factor.
  • Mounting: Cartridge.
  • Weight: 1.3 kg/ 2.8 lbs.

Model versions

  • A model = no dump valve.
  • B model = with dump valve.
  • G model = direct proportionally controlled.

Material certificate 1.2 on request

Flow Rates

Intensification Factor i Max.Intensified Outlet flow i/min Max. Inlet flow i/min
1.2 3.5 8.0
1.5 4.2 12.0
2.0 3.2 12.0
2.2 2.9 12.0
2.5 2.7 13.0
2.8 2.5 13.0
3.2 2.5 15.0
4.0 2.0 14.0
5.0 1.6 14.0
6.6 1.3 13.0
9.0 0.9 13.0
13.0 0.6 12.0
16.0 0.5 12.0
20.0 0.3 12.0
25.0 0.2 12.0

Function description

The basic operation is illustrated in the function diagram. The oil is fed through the connecting plate to the control valve to the IN port of the HC3 flowing freely through check valves KV1, KV2 and DV to the high pressure side H. From the high pressure side H oil is fed to port A on the connecting plate. In this condition maximum flow through the booster is achieved giving a fast forward function. When pump pressure is reached on the high pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on high pressure side is reached. If there is a pressure drop on the high pressure side due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function diagram

Function diagram HC3-1.2-G-9

Dimension

Dimension drawing HC3-1.2-G-9

Ordering an HC3-9

Ordering example of an HC3-9 with i = 1.2 DV incorporated: HC3 – 1.2 – G – 9

Attention note!

The G-model is available in 2 variants, when ordering please specify accordingly:

  • Dynamic – low hysteresis: Ordering example of an HC3-9 with i = 1.2 RV incorporated: HC3 – 1.2 – G – 9.
  • Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support.

Ordering example of an HC3-9 with i = 1.2 RV with opening ratio x.x incorporated: HC3 – 1.2 – G – x.x – 9

Model

  • HC3

Intensification,

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV
  • B = with DV
  • G = with proportional valve

Connections

  • 9

Mounting

Mounting-Instruction HC3-1.2-G-9
