MiniBOOSTER Hydraulic Intensifier HC2DH-13.0-A-W
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

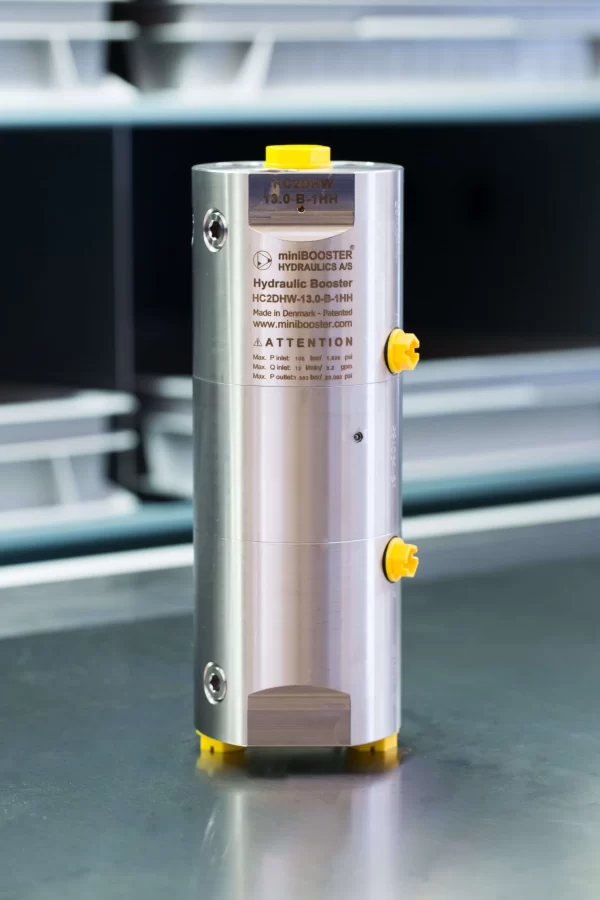

The HC2DH – 13.0 – A – W a dual-acting stainless steel 316L miniBOOSTER unit, delivers up to 5.0 l/min flow at the high-pressure end. It elevates supplied pressure to a higher outlet pressure while automatically compensating for oil consumption to maintain high pressure. Outlet pressure adjustment is achieved by varying the supplied pressure. Despite its flow capability, it remains a compact unit, weighing 8.0 kg.
Additional information
Product Specifications
- HC2DHW versions: 5 different intensification factors
- PIN: 20-207 bar
- PH: 1,380 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Mounting: Inline tube
- Weight: 8.0 kg
Model Versions:
- A model = no dump valve
- B model = with dump valve
Material certificate 3.1 on request
Flow Rate
| Intensification Factor | Max. Intensified Outlet Flow (l/min) | Max. Inlet Flow (l/min) |
|---|---|---|
| 4.0 | 5.0 | 14.0 |
| 5.0 | 4.0 | 14.0 |
| 6.6 | 3.2 | 13.0 |
| 9.0 | 2.2 | 13.0 |
| 13.0 | 1.5 | 12.0 |
Functions Desctiption
The system operates by directing oil through CV to the IN port, passing through 2x KV1, 2x KV2, and DV to high-pressure side H, maximizing booster flow. As pump pressure is reached, KV1, KV2, and DV close. OP1 and OP2 then alternate to achieve end pressure, automatically stalling once reached. OP1 and OP2 adjust for pressure drops, and the high-pressure connection H can be reversed.
Function Diagram
Function Diagram HC2DH-13.0-A-W
Dimensions
High Pressure Adapters
Function DiagramHC2DH-13.0-A-W
Dynamic seals
| Code | Seal material | Outlet pressure |
|---|---|---|
| HH | H-PUR / H-PUR | Max 1,380 bar HP |
| HP | H-PUR / PEEK | Max 1,380 bar HP |
Ordering an HC2DHW
Ordering example of an HC2DHW with i = 4.0, DV incorporated, BSPP connections and H-PUR dynamic seals:
HC2DHW – 4.0 – B – 1HH for media < 5 cSt (mm2/s) tested in water HC2DHW – 4.0 – B – 1SHH for media > 5 cSt (mm2/s) tested in hydraulic oil
Attention note!
High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.
Model
- HC2DHW
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV
Connections.
- Select thread
- 1 = BSPP, media < 5 cSt
- 1S = BSPP, media > 5 cSt
Dynamic seals.
- Select seal type
- See dynamic seal table
Max. Tightening Torque BSPP
| IN / R | H | |
| 1/4″ BSPP | 1/8″ BSPP | |
| with stainless steel washer | 4.0 da/Nm | 2.0 da/Nm |
