Product Description

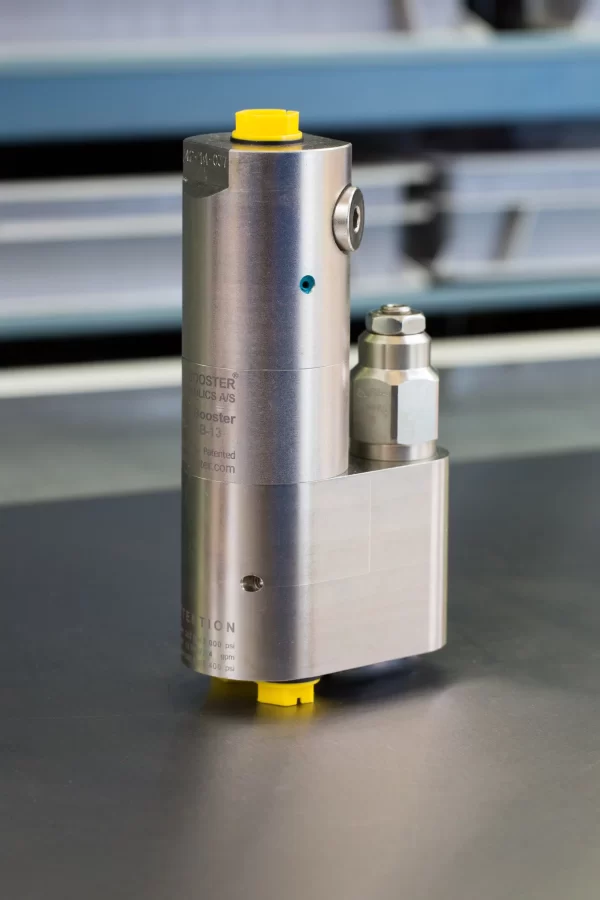

The HHC25 – 25.0 – B – 1 is a compact, 2.3 kg/5.0 lbs unit designed for applications requiring high pressure. It features a counterbalance valve for rapid cylinder movement and automatic stall at the high-pressure side. Continuous pressure maintenance is ensured through oil consumption compensation. Outlet pressure adjustment is achieved by varying the supplied pressure, with an optional orifice available for overspeed prevention at the R-port.

Additional information

Product specification

  • HC25 versions: 15 different intensification factors.
  • PIN: 20 – 207 bar.
  • PH: 800 bar maximum.
  • PRETURN: As low as possible (return pressure to tank).
  • POUTLET: PH = (PIN – PRETURN) x intensification factor.
  • Mounting: Inline tube.
  • Weight: 2.3 kg/5.0 lbs.

Model versions

  • A model = no dump valve.
  • B model = with dump valve.

Material certificate 25.0 on request

Flow Rates

Intensification Factor i Max.Intensified Outlet flow i/min Max. Inlet flow i/min
1.2 3.5 8.0
1.5 4.2 12.0
2.0 3.2 12.0
2.2 2.9 12.0
2.5 2.7 13.0
2.8 2.5 13.0
3.2 2.5 15.0
4.0 2.0 14.0
5.0 1.6 14.0
6.6 1.3 13.0
9.0 0.9 13.0
13.0 0.6 12.0
16.0 0.5 12.0
20.0 0.3 12.0
25.0 0.2 12.0

Function description

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the internal check valves to the high-pressure side H. When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function diagram

Function diagram HC25-25.0-B-1

Dimension

Dimension drawing HC25-25.0-B-1

Connection Types



Connection IN/R H1 H2/ H3/ H4
1 1/4″ BSPP 1/4″ BSPP On request



Ordering an HC25

Ordering example of an HC25 with i = 25.0, DV incorporated and BSPP connections: HC25 – 25.0 – B – 1

Attention note!

Valve pre-setting is required, please specify when ordering the intensifier.

Model

  • HC25

Intensification,

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV
  • B = with DV

Connections

  • Select thread
  • 1 = BSPP
