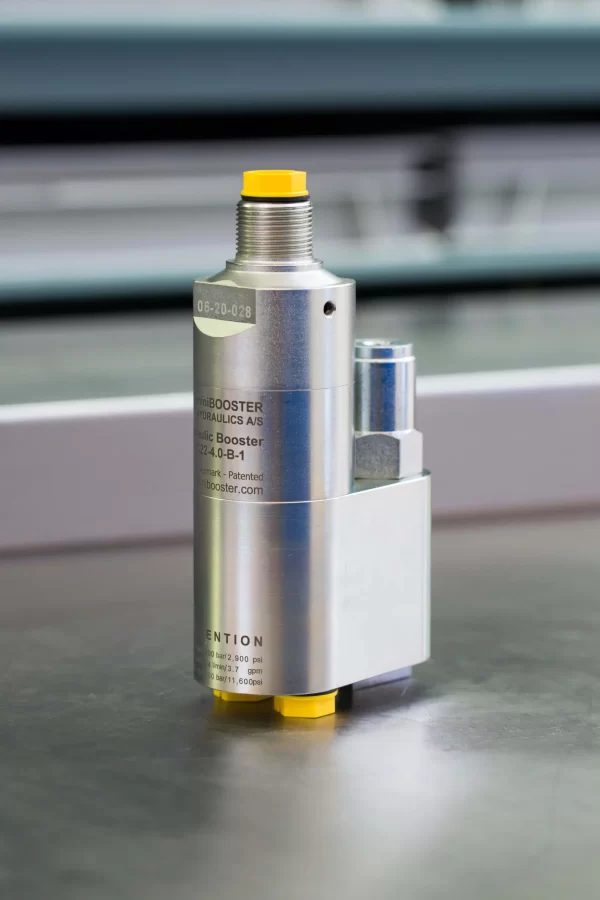

MiniBOOSTER Hydraulic Intensifier HC22-1.2-A-1

Category: Tag:

Product Description

The HC22 – 1.2 – A – 1 is a compact unit weighing only 2.3 kg/ 5.0 lbs. It is ideal for use in a variety of applications where building and maintaining high pressure is required. The HC22 raises supplied pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain the high pressure. The HC22 incorporates a Pressure Reducing Valve (PRV) to control inlet pressure to the booster section, and an optional orifice to reduce inlet flow to the maximum allowed for the intensification ratio selected. The integrated Pressure Reducing Valve (PRV) protects both booster and high-pressure tool against too high pressure. It secures a stable high pressure regardless of changes in the tank line pressure.

Additional information

Product specification

  • HC22 versions: 15 different intensification factors.
  • PIN: 20 – 207 bar.
  • PH: 800 bar maximum.
  • PRETURN: As low as possible (return pressure to tank).
  • POUTLET: PH = (PIN – PRETURN) x intensification factor.
  • Mounting: Inline tube.
  • Weight: 2.3 kg/5.0 lbs.

Model versions

  • A model = no dump valve.
  • B model = with dump valve.
  • G model = direct proportionally controlled.

Material certificate 1.2 on request

Flow Rates

Intensification Factor i Max.Intensified Outlet flow i/min Max. Inlet flow i/min
1.2 3.5 8.0
1.5 4.2 12.0
2.0 3.2 12.0
2.2 2.9 12.0
2.5 2.7 13.0
2.8 2.5 13.0
3.2 2.5 15.0
4.0 2.0 14.0
5.0 1.6 14.0
6.6 1.3 13.0
9.0 0.9 13.0
13.0 0.6 12.0
16.0 0.5 12.0
20.0 0.3 12.0
25.0 0.2 12.0

Function description

The basic operation is illustrated in the function diagram. Oil is fed through the directional valve (in the customer system) to the IN port, flowing freely through the PRV (pos. 5) and the internal check valves to the high-pressure side H. When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function diagram

Function Diagram HC22-1.2-A-1

Dimension

Dimension drawing HC22-1.2-A-1

Connection Types

Connection IN/R H H2/ H3/ H4
1 1/4″ BSPP 1/4″ BSPP On request



Ordering an HC22

Ordering example of an HC22 with i = 1.2, DV incorporated and BSPP connections: HC22 – 1.2 – A – 1

Attention note!

Valve pre-setting is required, please specify when ordering the intensifier.

  • Dynamic – low hysteresis: Ordering example of an HC22 with i = 1.2 RV incorporated and BSPP connections: HC22 – 1.2 – A – 1.
  • Fail safe – high hysteresis: The RV valve opening ratio is to be determined on individual basis. Contact our technical support.

Model

  • HC22

Intensification,

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV
  • B = with DV
  • G = with proportional valve

Connections

  • Select thread
  • 1 = BSPP
