Product Description

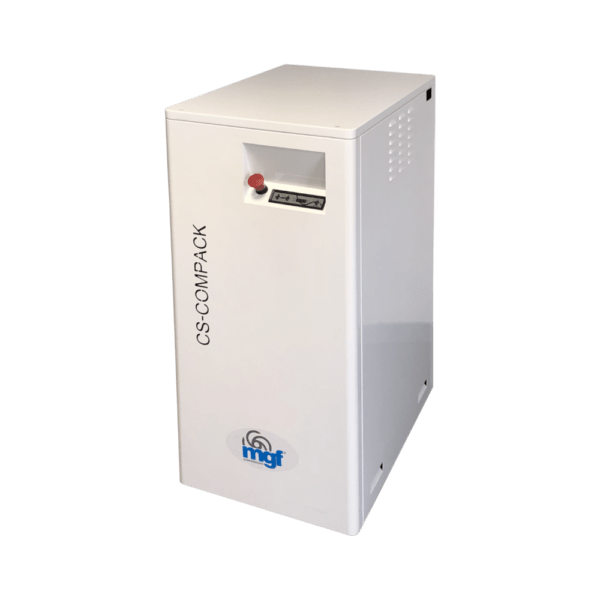

The RV-CS360-040-X compact screw compressor offers high performance with a power of 2.7 kW and a FAD of 71 Gal/min at 145 PSI, ensuring clean air quality compliant with ISO 8573-1 standards. Its silent operation at 59 dB, heavy-duty design, and user-friendly electronic controller make it ideal for various applications.
Additional information
Product Specifications
High Performance
Compact screw compressor with high performance!
- Power: 2,7 Kw
- FAD at 145 PSI: 71 Gal/min at 100% of operating duty cycle!
Clean Air
The high level of air quality is provided by the integrated membrane dryer and filtration system, able to provide air quality in conformity with ISO 8573-1, Classes 1-4-1:
- Solid particles residual: 0.01 micron
- +3°C dew point
- Oil food grade residual: 0.01 mg/m3
Silence
The sophisticated acoustic cabinet has a nice design and reduces the noise to only 59 dB/1m.
Electronic Controller
All the operating information can be easily monitored from the display.
Heavy Duty
Ideal solution for CAD CAM use and for applications that require heavy use cycles.
| Code | RV-CS360-040-X |
|---|---|
| Motor available | 3,6 HP – 2,7 KW |
| Volt / freq | 230 V/1ph/50Hz |
| FAD @ p.max with dryer | 71 Gal – 8.4 cfm |
| Air dryer and filtration system | Yes |
| Receiver | 40 L – 9 US gal dry |
| Noise level | 59 db |
| Duty cycle | 100% |
| Max pressure | 145 PSI |
| Size | 720 x 495 x 1140 mm 28.3 x 19.5 x 44.9 in |
| Packaging | 800 x 560 x 1300 mm 31.5 x 22 x 51.2 in |
| Net weight | 148 kg – 326 lb |
| Gross weight | 157 kg – 346 lb |
