Product Description

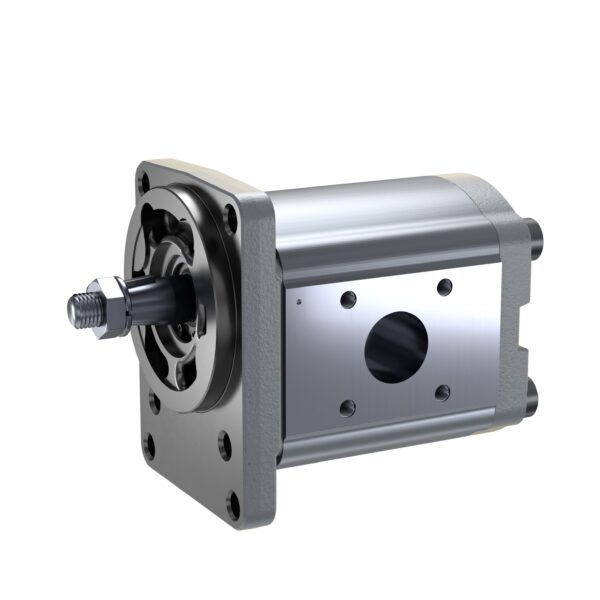

The HYDRAULIC GEAR PUMP 0510725043 delivers a high maximum flow of 67.5 l/min and features a geometric displacement of 22.5 cm³/rev. It operates with a maximum intermittent pressure of 230 bar and a rotational speed of 3000 rpm. Constructed with corrosion-resistant materials, it ensures reliable performance in various applications.
Additional information
Specification
| Max. flow [l/min] | 67.5 |
|---|---|
| Size (geometric displacement) [cm³/rev] | 22.5 |
| Maximum intermittent pressure [bar] | 230 |
| Maximum rotational speed [rpm] | 3000 |
| Drive shaft | Conical 1:5 |
| Direction of rotation | Clockwise rotation |
| Front cover | Rectangular flange Ø 80 mm |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| External gear unit | External gear unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Unit version | Bearing diameter Ø 20mm |
| Version | Corrosion-resistant, pinned |
| Line connection | Square flange DIN 3901/3902 |
| Sealing material | NBR |
| Rear cover | Standard |
| Special version | Deviations from catalogue standards, see drawing |
| Weight [kg] | 4.28 |
