Product Description

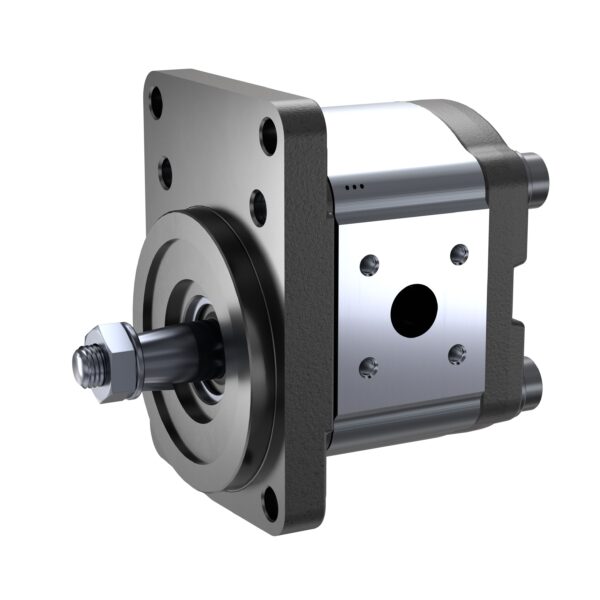

The HYDRAULIC GEAR PUMP 0510625315 offers a maximum flow rate of 47.2 l/min with a geometric displacement of 16 cm³/rev. It operates under a maximum intermittent pressure of 280 bar and a rotational speed of 2950 rpm. Featuring a corrosion-resistant design, it is suitable for general applications.
Additional information
Specifications
| Max. flow [l/min] | 47.2 |
|---|---|
| Size (geometric displacement) [cm³/rev] | 16 |
| Maximum intermittent pressure [bar] | 280 |
| Maximum rotational speed [rpm] | 2950 |
| Drive shaft | Conical 1:5 |
| Direction of rotation | Counter clockwise rotation |
| Front cover | Rectangular flange Dia. 80 mm |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| Application | General |
| External gear unit | External Gear Unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Unit version | Bearing diameter 18mm |
| Version | Corrosion resistant, pinned |
| Line connection | Square flange to fitting ISO 8434-1 |
| Sealing material | NBR |
| Rear cover | Standard (cast iron) |
| Weight [kg] | 3.74 |
