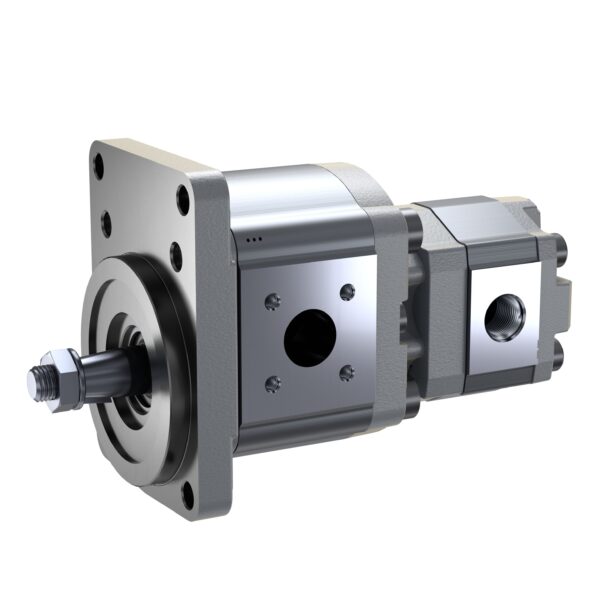

HYDRAULIC GEAR PUMP 0510566001
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The HYDRAULIC GEAR PUMP 0510566001 delivers a max flow of 38.5 l/min with a 11 cm³/rev displacement, while PU2 offers 3.5 l/min with 1 cm³/rev. It operates at 3500 rpm, with maximum intermittent pressures of 250 bar for unit 1 and 180 bar for unit 2. It features a conical 1:5 drive shaft, clockwise rotation, aluminum housing, and NBR seals.
Additional information
Specifications
| Max. flow [l/min] | 38.5 |
|---|---|
| Max. flow PU2 [l/min] | 3.5 |
| Size (geometric displacement) [cm³/rev] | 11 |
| Size (geometric displacement) PU2 [cm³/rev] | 1 |
| Maximum intermittent pressure pump unit 1 [bar] | 250 |
| Maximum intermittent pressure pump unit 2 [bar] | 180 |
| Maximum rotational speed [rpm] | 3500 |
| Drive shaft | Conical 1:5 |
| Direction of rotation | Clockwise rotation |
| Front cover | Rectangular flange Ø 80 mm |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| External gear unit | External gear unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Series PU2 | Model B (0.84 … 10 cm³/rev) |
| Unit version | Bearing diameter Ø 18mm |
| Version | Phosphated, pinned |
| Line connection | Square flange DIN 3901/3902 |
| Line connection PU2 | Metric thread to DIN 3852T1 |
| Sealing material | NBR |
| Rear cover | Standard |
| Weight [kg] | 4.3 |
