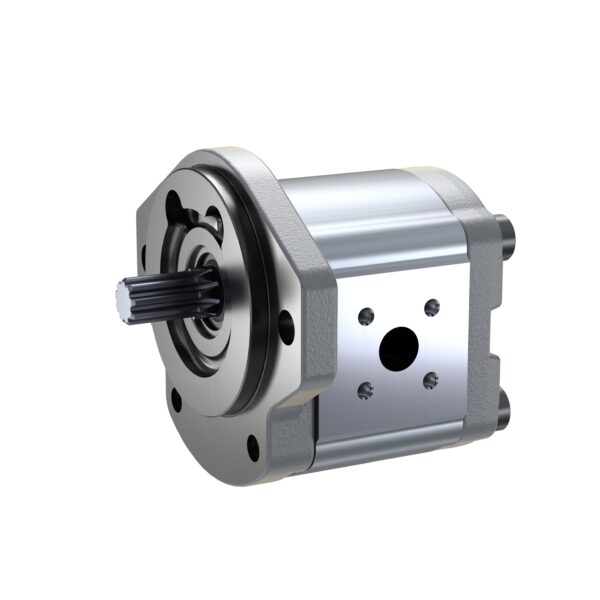

HYDRAULIC GEAR PUMP 0510425020
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The HYDRAULIC GEAR PUMP 0510425020 offers a robust solution for general applications, boasting a maximum flow of 32.0 l/min and a geometric displacement of 8 cm³/rev. With a maximum intermittent pressure of 280 bar and a rotational speed of 4000 rpm, it features a spline shaft drive with clockwise rotation. Housed in durable aluminum, it includes standard noise levels, an SAE J744 82-2 front cover, and a standard cast iron rear cover. Weighing 3.33 kg, it ensures reliable performance with a phosphatized, pinned version and NBR sealing material.
Additional information
Specifications
| Max. flow [l/min] | 32.0 |
|---|---|
| Size (geometric displacement) [cm³/rev] | 8 |
| Maximum intermittent pressure [bar] | 280 |
| Maximum rotational speed [rpm] | 4000 |
| Drive shaft | Spline shaft SAE J744 16-4 (9T 16/32DP) |
| Direction of rotation | Clockwise rotation |
| Front cover | SAE J744 82-2 (A) 2-bolt flange |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| Application | general |
| External gear unit | External Gear Unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Unit version | Bearing diameter 18mm |
| Version | phosphatized, pinned |
| Line connection | Square flange to fitting ISO 8434-1 |
| Sealing material | NBR |
| Rear cover | Standard (cast iron) |
| Weight [kg] | 3.33 |
