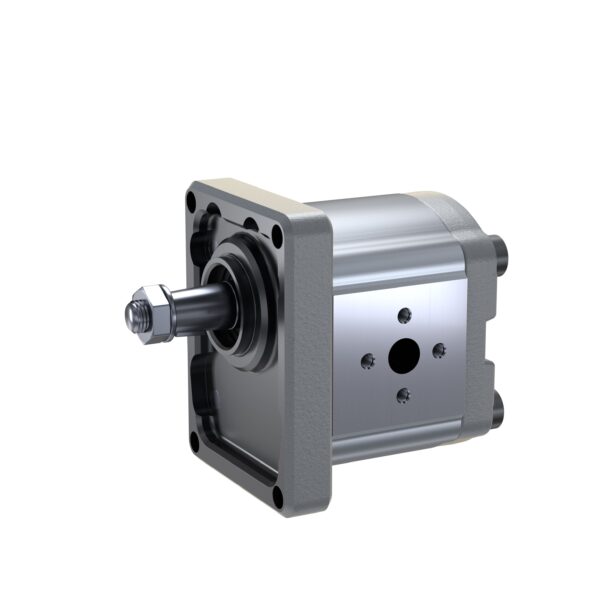

HYDRAULIC GEAR PUMP 0510325025
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The 0510325025 hydraulic gear pump boasts a maximum flow of 21.5 liters per minute and a geometric displacement of 5.5 cm³ per revolution. With a maximum intermittent pressure of 280 bar and a rotational speed reaching 3900 rpm, it operates with a clockwise rotation. Its design features a conical 1:8 drive shaft, aluminum housing, and rectangular flange front cover with a diameter of 36.47 mm. This corrosion-resistant, pinned version, equipped with NBR sealing material and a standard cast iron rear cover, offers reliable performance in various general applications.
Additional information
Specifications
| Max. flow [l/min] | 21.5 |
|---|---|
| Size (geometric displacement) [cm³/rev] | 5.5 |
| Maximum intermittent pressure [bar] | 280 |
| Maximum rotational speed [rpm] | 3900 |
| Drive shaft | Conical 1:8 |
| Direction of rotation | Clockwise rotation |
| Front cover | Rectangular flange Diameter 36.47 mm (M8) |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| Application | General |
| External gear unit | External Gear Unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Unit version | Bearing diameter 18mm |
| Version | Corrosion resistant, pinned |
| Line connection | Square flange (Italian version) |
| Sealing material | NBR, shaft seal in FKM |
| Rear cover | Standard (cast iron) |
| Weight [kg] | 3.15 |
