Product Description

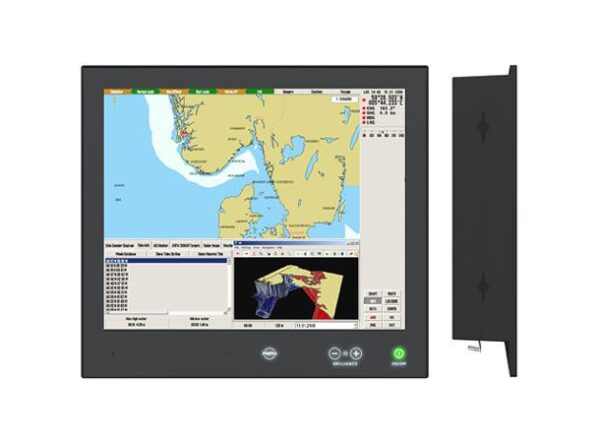

The HD 17T21 STD-MA1-FAGA is a 17.0-inch industrial display by Hatteland Display AS, offering a high-quality TFT with LED backlight and a native resolution of 1280×1024. Designed for professional maritime use, it provides reliability, longevity, and flexibility with options like multi-touch screen and optical bonding. It supports a variety of signal inputs and features a multi-power supply, accommodating both AC and DC power sources. Its rugged design includes IP66 front protection, making it suitable for demanding environments. Accessories and factory options like capacitive touch screens and optical bonding technology are available to enhance functionality.
Additional information
Product Specifications
TFT Technology
- High Quality TFT with LED Backlight
- 17.0 inch viewable image size, Aspect Ratio 5:4
- TFT active-matrix liquid crystal panel
TFT Characteristics
| Native Resolution | 1280 x 1024 |
| Pixel Pitch (RGB) | 0.264 (H) x 0.264 (V) mm |
| Light Intensity High Bright | 1000 cd/m² (typical) |
| Response Time | 5ms (typical), “black” to “white” |
| Contrast Ratio | 1000:1 (typical) |
| Light Intensity | 350 cd/m² (typical) |
| Viewable Angle | +/- 80 deg. (typical) (Up/Down/Left/Right) |
| Active Display Area | 337.92 (H) x 270.336 (V) mm |
| Max Colors | 16.7 million |
Digital Separate Synchronization
- Composite Synchronization
- Synchronization on Green
- Auto detects VGA -> SXGA, interlaced and non-interlaced
Synchronization Range
| Horizontal: | 31.5 kHz to 91.1 kHz |
| Vertical: | 60 Hz* to 85 Hz |
* Recommended for optimal picture quality
Supported Signals:
Resolutions:
| VGA | 640 x 480 (including 640 x 350) |
| SVGA | 800 x 600 (including 720 x 400) |
| XGA | 1024 x 768 |
| SXGA | 1280 x 1024 |
Vedio Signals
- Interlaced HDTV, NTSC, PAL and SECAM video
- Composite video
Power Specifications
Multi-power Supply
- 115&230VAC – 50/60Hz + 24 VDC
Note: You may connect either AC power or DC power or both. In case both sources are connected, power will be sourced from the AC input. If AC input is lost, there will be a uninterrupted switch-over to DC input.
Power Consumption
- Operating AC/DC: 22W (typ) – 60W (max)
Physical Considerations
- Width: 390.00 mm (15.35 inches)
- Height: 351.00 mm (13.82 inches)
- Depth: 73.50 mm (2.89 inches)
- 4 x M6 VESA mounting 280x150mm , Maximum depth: 12mm
- Weight: TBDkg / TBDlbs
Signal Terminals
| Port Name | Description |
|---|---|
| DVI-I IN | 2 * 29p DVI Female (or as VGA IN with adapter) |
| DP1.2 IN | Comp. Video IN : 1 x 20p DisplayPort (female) : 2 x BNC Connector (female) |
| SCOM RS-422/485 | 2 x 5-pin Terminal Block 3.81, non-isolated+Buzzer VGA OUT : 1 x 15p HD D-SUB (female) – Clone of VGA IN |
| SCOM+Touch | 1 x USB TYPE A Connector (female) |
| Ethernet | 1 x RJ45 Connector for Remote Control |
| SCOM RS-232 | 1 x 9p D-SUB (female) non-isolated+Buzzer |
| Potmeter/User | 1 x 9p D-SUB (male) (Potentiometer IN, +5VDC OUT, BRT +/-IN) |
| AC Power IN | 1 x Std IEC Inlet |
| DC Power IN | 1 x 2-pin Terminal Block 5.08 |
DVI-I Port #1 as VGA IN also acts as clone to VGA Signal Out (buffered). **Tested at recommended resolutions. The VGA
output signal (buffered) is at same resolution and sync as the VGA input. The output is working even if the display unit is turned off, but power cable/supply must be connected/provided.
User Controls
- Power On/Off, On Screen Display Menu, Brightness Control (-/+)
- Hotkeys (left/right)
- Mode Status Indicators (ECDIS, Service)
- Buzzer (not visible), Light Sensor (not visible)
Environmental Considerations
| Operating | Temperature: -15°C to +55°C Humidity: Up to 95% |
| Storage | Temperature: -20°C to +60°C Humidity: Up to 95% |
| IP Rating | Protection: IP66 front – IP22 rear (EN60529) |
Even although the test conditions for bridge units provide for a maximum operating temperature of 55°C, continuous operation of all electronic components should, if possible, take place at ambient temperatures of only 25°C. This is a necessary prerequisite for long life and low service costs.
Available Accessories:
| HD CMB SX1-A1 | 1 x Console Mount Kit (3-12mm) |
| HD CMB SX1-A2 | 1 x Console Mount Kit (1-12.75mm) |
| HD CMB SX1-A3 | 1 x Console Mount Kit (1-12.75mm) – Long screws for easier installation in tight spaces. |
| HD TMB SX1-B1 | 1 x Table Mount Bracket |
| HD VED SX1-A1 | 1 x VESA Bracket, not EN60945 Tested |
| HD REM SX1-A1 | 1 x External Remote Control |
| HD 17COV SX1-A1 | 1 x UV Sun Cover |
Factory Options:
- Projected Capacitive Touch Screen (Multitouch, USB interface)
- Optical Bonding Technology
- Color Calibrated models (ECDIS)
- Sunlight readable / High Bright (includes Optical Bonding)
Manual and Data Sheets
