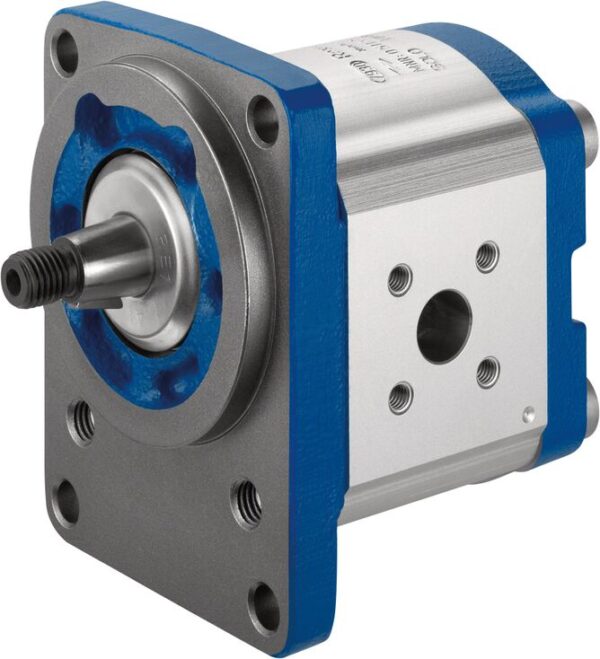

GEAR MOTOR 0511525008

Category: Tag:

Product Description

The gear pump 0511525008 has a displacement of 11 cm³/rev and rotates clockwise. It features a square flange with a diameter of 105 mm and a rectangular flange to fit ISO 8434-3 standards. The seal material is NBR (nitrile rubber), suitable for fluid temperatures ranging from -15°C to +80°C. Mineral oil is the recommended fluid with a viscosity of 10 mm²/s to 300 mm²/s.

Additional information

Specifications

Displacement 11 cm³/rev
Direction of Rotation Clockwise
Flange Diameter 105 mm (Square flange)
Flange Type Rectangular flange to fit ISO 8434-3
Seal Material NBR (nitrile rubber)
Fluid Working Temperature Range -15°C to +80°C
Recommended Fluid Mineral oil
Recommended Viscosity 10 mm²/s to 300 mm²/s
