Product Description
Rely on Ecoglo®’s F7-E30 Photoluminescent Anodized Flat Stair Nosing to provide excellent step-edge visibility and enhances egress speeds in all lighting conditions. Our expertly engineered photoluminescent strip is integrally bonded into the aluminum stair nosing, along with a non-slip strip, which provides a stark color contrast, further enhancing step edge visibility. After the power fails in your facility, rely on this luminous egress path marking product to cut through shadows and provide a bright, easy to follow source of egress lighting. The sleek aluminum profile of Ecoglo®’s stair nosing provides a modern look to any facility, without distracting from the facility’s design. To best meet the needs of any project, our metal stair nosing can easily be installed on a range of substrates, such as concrete, timber, tile, steel and checker plate. The safety of all people in a facility depends on a clear egress plan and advance site preparation including clear marking of escape routes. Photoluminescent egress marking systems installed in exit stairwells are a critical, code-required component of any building safety system. Photoluminescent markings are always on, full proof systems to guide people out of buildings during any type of emergency conditions. Charges with ambient light. Always-on visible light. No electricity required. Our photoluminescent systems are comprised of materials including aluminum, epoxies, PVC, tapes, and paints . A one-inch wide “glowing” stripe is applied to the leading edge the steps, on handrails, and along the perimeter of landings and pathways leading out of the building. General Information Install with polyurethane adhesive and mechanical fasteners, or adhesive only. Supply with pre-drilled countersunk holes. Includes stainless steel fasteners and concrete nylon anchors. Standard location is 2″ from each end and approx. 12″ apart. Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft. Inserts are supplied unattached. Inserts are installed over the mechanical fasteners using a polyurethane adhesive (included). Inserts can be cut using a shear. Aluminum nosings are cut with a saw. Cutting inserts with saw will damage the saw blade. Weight: 0.439 lbs/ft. Aluminum Finish Available in Clear Anodized Aluminum Finish Black, Light Bronze and, Dark Bronze Anodize finishes are available at an additional cost
Additional information

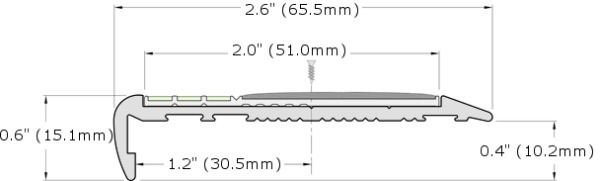

Product specification
- Install with polyurethane adhesive and mechanical fasteners, or adhesive only.
- Supply with pre-drilled countersunk holes. Includes stainless steel fasteners and concrete nylon anchors. Standard location is 2″ from each end and approx. 12″ apart.
- Available in cut to length sizes. (Tolerance +or- 1/8”) Standard lengths are 8ft and 10ft Inserts are supplied unattached. Inserts are installed over the mechanical fasteners using a polyurethane adhesive (included).
- Inserts can be cut using a shear. Aluminum nosings are cut with a saw. Cutting inserts with saw will damage the saw blade.
- Weight: 0.439 lbs/ft.
Aluminum Finish
- Available in Clear Anodized Aluminum Finish.
- Black, Light Bronze and, Dark Bronze Anodize finishes are available at an additional cost.
Nosing Engineered for Durability:
- Manufactured using Ecoglo’s patented process which produces the most durable and highly efficient photoluminescent product available.
- Unique ridges in the photoluminescent strips protect it from most abrasive wear. They provide slip resistance while still allowing the product to be easily cleaned.
- The hard-wearing silicon carbide non-slip material is integrally bonded to the aluminum substrate. Thousands of people can walk on it with no signs of wear and tear.
- The thick anodized finish is aesthetically pleasing, prevents corrosion, and is extremely hard and abrasion resistant. The anodized aluminum surface is harder than pure aluminum, second only to diamonds hard crystalline structure.
Superior Step Edge Safety:
- The color contrasting the non-slip material with advanced photoluminescent technology provides step edge visibility in all light conditions.
- The unique ridges in the Ecoglo® photoluminescent strips and the integrated anti-slip contrast strips provide all-weather slip resistance.
For Indoor Use and Outdoor Use:
- Tested to accelerated UV/weathering exposure, and proven to be highly resistant to the effects of UV/weathering.
- The loss in performance is less than can be detected by the human eye when subjected to 6000 hours of UV exposure, which is similar to 30 years of outdoor exposure.
- The polymer used in Ecoglo’s patented process is “long chain” which forms a strong UV resistant product when bonding.
Environmentally Friendly Flat Stair Nosing:
- LEED points qualified.
- Zero energy consumption.
- Non-Radioactive and Non-toxic.
- Recyclable; No disposable cost.
