DSH101CRT PTC 2/2 Valve NCMAN. over
$1,300.91
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
Introducing the DSH101CRT PTC 2/2 Valve NCMAN, a Parker solenoid valve that takes flow control to the next level! This wonder device is designed to check flow in one direction and allow free flow in the other, offering exceptional performance and versatility. With both normally-open and normally-closed configurations available, you can customize it to match your unique needs. Capable of withstanding pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm), this valve is a true powerhouse performer. What’s more, its low leakage makes it a cost-effective and reliable choice. Don’t settle for second best – get your hands on the DSH101CRT PTC 2/2 Valve NCMAN and experience the power of precision flow control!
Additional information
Product Specifications
| Part Number | DSH101CRT | Brand | Parker |

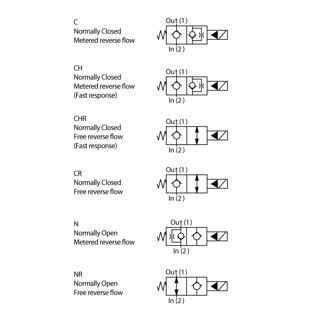

| Configuration | Normally Closed | Flow Direction | Side to Nose (2-1) |
| Division | Hydraulic Cartridge Systems Division | Free Reverse Flow | Yes |
| Function | 2-way | Override Functionality | Push and Twist |
| Wire Mesh Screen Included | No | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Maximum Operating Pressure | 350 bar | 5000 psi |
| Flow Rate | 15 GAL/MIN, 60 L/MIN | 15 Gal/min | 60 L/min | Maximum Flow Rate | 15 Gal/min | 60 L/min |
| Leak Rate | 5 drops/min | Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C10-2 |
| Minimum Operating Temperature | -35 °F | -37 °C | Maximum Operating Temperature | +93 °C | +200 °F |
| Operating Temperature | -35 to +200 °F | -37 to +93 °C | Response Time | 80 ms |
| Installation Torque | 51-55 lb-ft | 69-75 Nm | Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm |
| Actuation Type | Electrical, Manual | Mounting Type | Screw in cartridge valve |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Operation Type | Solenoid operated, Manually operated |
| Coil Type | 5/8″ Super Coil | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Input Voltage | 85% of rated voltage at 72°F (20°C) min | Weight | 0.2 kg | 0.41 lb |
