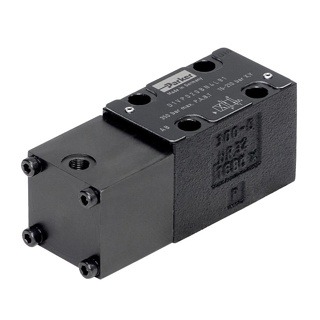

Directional Valve DC07
$1,936.72
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The hydraulic directional control valves series D1VP and D3DP offer safe shifting and a variety of spool options, and are suitable for NG06/CETOP 03/NFPA D03 and NG10/CETOP 05/NFPA D05 applications.
Additional information
Product Specifications
| Part Number | D1VP002CN4L | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 2 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 3-way | Seal Material | NBR |
| Body Material | Cast iron | Spool Position | 3 positions, spring offset in position 0, operated in position a or b |
| Mounting Position | Unrestricted, preferably horizontal | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 60 L/min | Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 60 °C | Pilot Port Type | High tank pressure, indirect via pilot spool |
| Mounting Type | Subplate mounting | For Fluid Type | Hydraulic oil according to DIN 51524 |
| Actuation Type | Hydraulically operated | Operation Type | Direct |
| Weight | 1.3 kg |
