Directional. NG6 B design
$1,740.96
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

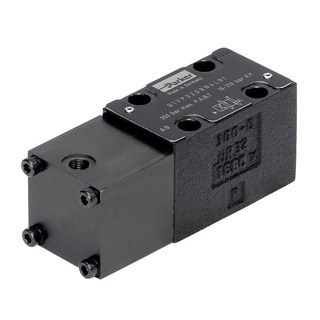

Dynamic and robust, the D1VP (NG06 / CETOP 03 / NFPA D03) and D3DP (NG10 / CETOP 05 / NFPA D05) directional control valves offer smooth operation and a variety of spool choices.
Additional information
Product Specifications
| Part Number | D1VP020BN4L | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 20 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 2-way | Seal Material | NBR |
| Body Material | Cast iron | Spool Position | 2 positions, spring offset in position b, operated in position a |
| Mounting Position | Unrestricted, preferably horizontal | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 60 L/min | Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C | Pilot Port Type | High tank pressure, indirect via pilot spool |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Actuation Type | Hydraulically operated |
| Mounting Type | Subplate mounting | Operation Type | Direct |
| Weight | 1.3 kg |
