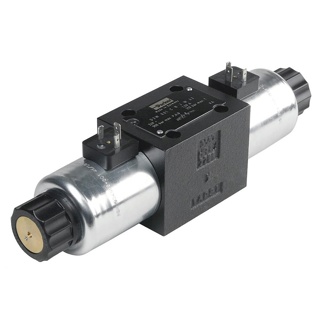

D3W001CNJW directional. NG1024VDC
$1,237.12
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The D3W001CNJW directional valve is a powerful choice for precise control. Its NG1024VDC technology allows for efficient operation while maintaining a high flow rate of up to 150 liters per minute. Plus, its low pressure drop means less energy is wasted. Get the performance you need with the NG10 direct operated directional control valve series D3W.
Additional information
Product Specifications
| Part Number | D3W001CNJW | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 001 |
| Function | 3-Way | Seal Material | NBR |
| Body Material | Cast iron | Solenoid Option | With manual override |
| Spool Position | 3 positions, spring offset in position 0, operated in position a or b | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 150 L/min | Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C | Actuation Type | Solenoid |
| Mounting Type | Subplate mounting | For Fluid Type | Hydraulic oil according to DIN 51524 |
| Operation Type | Direct | Input Voltage | 24 VDC |
| Weight | 6.3 kg |
