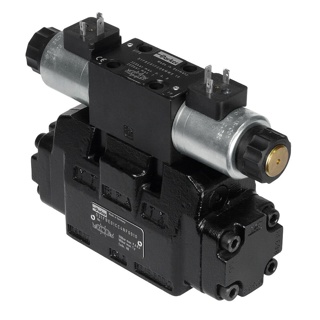

D31FBE01EC4NJW0 PROPVENTIL NG10
$4,051.54
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
Upgrade your hydraulic system with Parker’s D*1FB series of pilot operated proportional DC valves, designed for superior performance. Whether you need to adjust flow rates with precision or require compliance with ATEX for safety, these valves deliver. Trust in Parker’s proven technology for exceptional control and reliability in any application.
Additional information
Product Specifications
| Part Number | D31FBE01EC4NJW0 | Brand | Parker |
| Product Series | Proportional DC valve | Spool Code | E01 |
| Port Connection | NG10 / CETOP 05 | Solenoid Connection | EN 175301-803 |
| Division | Industrial Systems Division Europe | Function | 3-way |
| Pilot Inlet / Drain Locations | Internal / internal | Seal Material | NBR |
| Body Material | Cast iron | Solenoid Option | 24 V / 1.1 A |
| Spool Position | Operated in position a or b | Mounting Position | Unrestricted |
| Maximum Operating Pressure | 350 bar | Flow Rate | 120 L/MIN |
| Mounting Style | Subplate mounting | Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C | Operation Type | Pilot |
| For Fluid Type | Hydraulic oil according to DIN 51524 … 535 | Actuation Type | Proportional solenoid |
| Weight | 8.6 kg | Protection mode | Standard |
