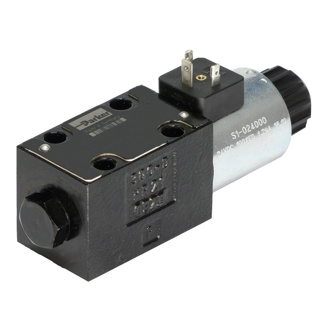

D1vw001knjw ng6-valve 24 VDC
$619.36
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
Upgrade your hydraulic system with the high-performance D1VW NG06 (CETOP 03) valve. This on/off valve offers unbeatable functional performance while consuming minimal energy, resulting in impressive cost savings. Choose from versatile options such as the soft shift option or ATEX/IECEx explosion-proof versions. Don’t settle for less when it comes to optimizing your pressure drop and efficiency.
Additional information
Product Specifications
| Part Number | D1VW001KNJW | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 001 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 3-Way | Seal Material | NBR |
| Body Material | Cast iron | Solenoid Option | Standard |
| Spool Position | 2 positions, spring offset in position 0, operated in position b | Mounting Position | Unrestricted, preferably horizontal |
| Maximum Operating Pressure | 350 bar | Maximum Flow Rate | 80 L/min |
| Minimum Operating Temperature | -25 °C | Maximum Operating Temperature | 60 °C |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Actuation Type | Solenoid |
| Mounting Type | Subplate mounting | Operation Type | Direct |
| Connection Type | Connector as per EN 175301-803 | Input Voltage | 24 VDC |
| Weight | 1.5 kg |
