D1VP030DN4L91
$2,334.65
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

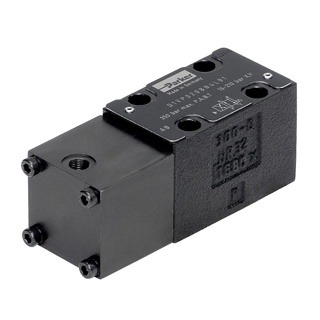

The D1VP030DN4L91 is a powerful hydraulic directional control valve that offers safe and versatile shifting with a variety of spool options. It is available in series D1VP (NG06 / CETOP 03 / NFPA D03) and D3DP (NG10 / CETOP 05 / NFPA D05).
Additional information
Product Specifications
| Part Number | D1VP030DN4L | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 30 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 2-way | Seal Material | NBR |
| Body Material | Cast iron | Mounting Position | Unrestricted, preferably horizontal |
| Spool Position | 2 positions, detent, operated in position a or b, no center, no offset postion | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 60 L/min | Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 60 °C | Pilot Port Type | High tank pressure, indirect via pilot spool |
| Mounting Type | Subplate mounting | Actuation Type | Hydraulically operated |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Operation Type | Direct |
| Weight | 1.3 kg |
