CB101BS30 translents Patron

$734.25

Contact us for Pricing
Availability: Out of stock Category:
  • Payment by invoice possible
  • Not currently in stock, contact us for factory lead times
  • Payment by invoice possible
  • In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
  • Del Rey is proud to be the exclusive distributor of Waagene products
  • Payment by invoice possible
  • Low quantities typically kept on hand; please contact us for availability at lead time
  • Authorized MiniBOOSTER distributor & hydraulic excellence partner

Product Description

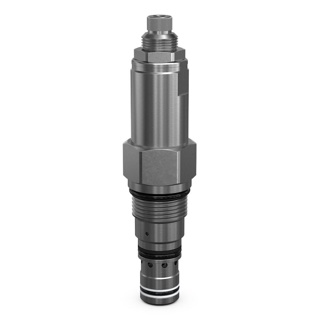

Pilot your load with ease using the CB101BS30 Translents Patron Parker load control valves. These valves provide reliable and dynamic control even under high pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm). Say goodbye to runaway loads with independent downstream pressure control operated by a quick pilot signal.

Additional information

Product Specifications

Part Number CB101BS30 Brand Parker
Flow Direction Cylinder port 1, Valve port 2, Pilot port 3 Division Hydraulic Cartridge Systems Division
Function Counterbalance Valve Pilot Location External
Seal Material Nitrile Valve Material All parts steel. All operating parts hardened steel
Adjustment Mechanism Screw Adjustment | Screw Holding Pressure 210 bar | 3000 PSI, 210 BAR | 3000 psi
Maximum Operating Pressure 350 bar | 5000 psi Pressure Control Range 166-350 bar | 2400-5000 PSI, 166-350 BAR | 2400-5000 psi
Maximum Flow Rate 12 GAL/MIN, 45 L/MIN | 12 Gal/min | 45 L/min Flow Rate 12 Gal/min | 45 L/min
Leak Rate 5 @ 80% of setting drops/min Maximum Inlet Pressure Rating 380 bar | 5500 psi
Filter Efficiency Rating ISO 4406 18/16/13, SAE Class 4 | ISO 4406:1999 Code 18/16/13 Pilot Pressure Ratio 4.5:1
Pressure Control Sensitivity 21.2 per turn bar | 307 per turn psi Cavity Size C10-3
Minimum Operating Temperature -34 °C | -30 °F Operating Temperature -30 to +250 °F | -34 to +121 °C | -30° to +250° °F | -34° to +121° °C
Maximum Operating Temperature +250 °F | +121 °C Installation Torque 16 lb-ft | 22 Nm
Mounting Type Threaded Cartridge Valve Actuation Type Pilot Operated
For Fluid Type Mineral-based or synthetic hydraulic fluids Maximum Kinematic Viscosity Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt | 45-2000 SSU (6 to 420 cSt)
Weight 0.23 kg | 0.5 lb
