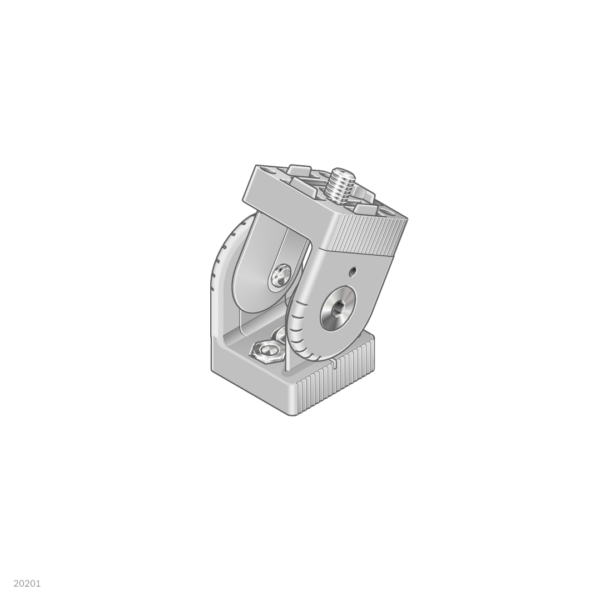

Bosch Rexroth Joint 30×30 3842502683
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The Bosch Rexroth Joint 30×30 is designed for profile slot 8, with a modular dimension of 30mm. Featuring ESD protection, it has swivel range of 182° and withstands forces up to 10000N. Packaged individually, it includes necessary fastening materials and weighs 0.2kg. Constructed from diecast zinc for durability.
Additional information
Specifications
| Profile slot | 8 |
|---|---|
| Modular dimension [mm] | 30 |
| ESD | yes |
| Dimensions | 30×30 |
| Packaging unit | 1 |
| Swivel range [°] | 182 |
| Force F2 [N] | 600 |
| Force F1 [N] | 10000 |
| Scope of delivery | Incl. fastening material |
| Fastening material | 2x cylinder head screw DIN7984-M6x12, 2x T-nut M6x12, 4x hexagon nut DIN934-M5 |
| Material | Diecast zinc |
| Material information | Joint: Diecast zinc, Fastening material: Steel, galvanized |
| Required accessories | Bolt connector D11 for end face connections: 3852555590 |
| Weight [kg] | 0.2 |
